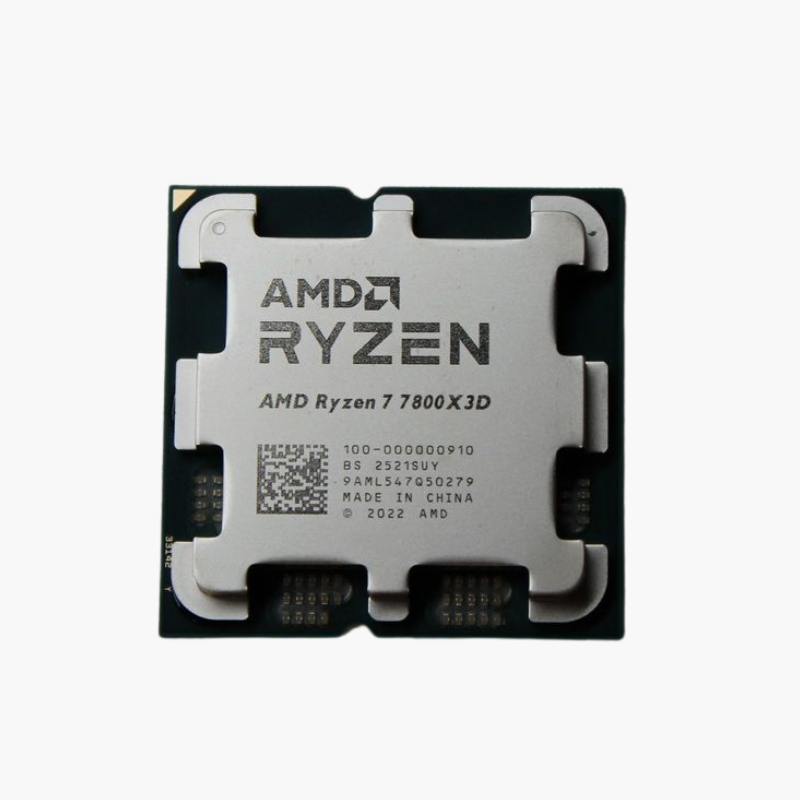

AMD Ryzen 7 7800X3D Desktop Processor – 8 Cores, 16 Threads, Up to 5.0 GHz, AM5, 3D V-Cache

The AMD Ryzen 7 7800X3D is a Ryzen 7000 Series desktop processor based on Zen 4 with 3D V-Cache (Raphael-X), featuring 8 cores, 16 threads and boost clocks up to 5.0 GHz. It uses the AM5 socket, supports DDR5-5200 memory and PCIe 5.0, and is aimed at gamers who want the highest possible frame rates.

Why Games Stall on Memory Latency – and How 3D V-Cache Fixes It in the Ryzen 7 7800X3D

Modern games constantly shuffle large amounts of data such as world geometry, AI states and physics. When that data does not fit in the processor’s cache, the CPU has to wait on system memory, and those waits show up as lower frame rates and uneven frame times, especially in simulation and open-world titles.

The Ryzen 7 7800X3D stacks extra cache directly onto the processor using AMD 3D V-Cache, for a total of 96MB of L3 cache. Far more of a game’s working data stays on the chip, so the cores spend less time waiting and more time preparing frames.

The result is top-tier gaming performance at a 120W TDP, which keeps it easy to cool compared to high-wattage alternatives.

Zen 4 Architecture on 5nm With DDR5 and PCIe 5.0

Zen 4 moves to a 5nm process with higher clocks, AVX-512 instructions and the AM5 platform. The Ryzen 7 7800X3D supports DDR5 memory with AMD EXPO profiles and PCIe 5.0 for next-generation graphics and storage.

Tuning and Cooling the X3D

Manual multiplier overclocking is locked to protect the stacked cache, but Precision Boost Overdrive and Curve Optimizer are supported for fine-tuning efficiency and boost behavior.

Setup Instructions

How to Install the AMD Ryzen 7 7800X3D

1. Confirm your motherboard uses the AM5 socket with an AMD 600-series or 800-series chipset. Updating to the latest BIOS is recommended for best memory compatibility.
2. Open the socket retention frame, align the triangle on the Ryzen 7 7800X3D with the triangle on the socket, and lower it straight down. AM5 is an LGA socket, so the pins are on the motherboard; avoid touching them. Close the frame and lever.
3. Apply a thin layer of thermal paste and mount an AM5-compatible cooler; a quality tower air cooler or a 240mm AIO liquid cooler suits this 120W processor.
4. Power on (the first boot can take a few minutes while memory training runs), enter the BIOS, enable the EXPO memory profile, then install Windows and the latest AMD chipset drivers.
