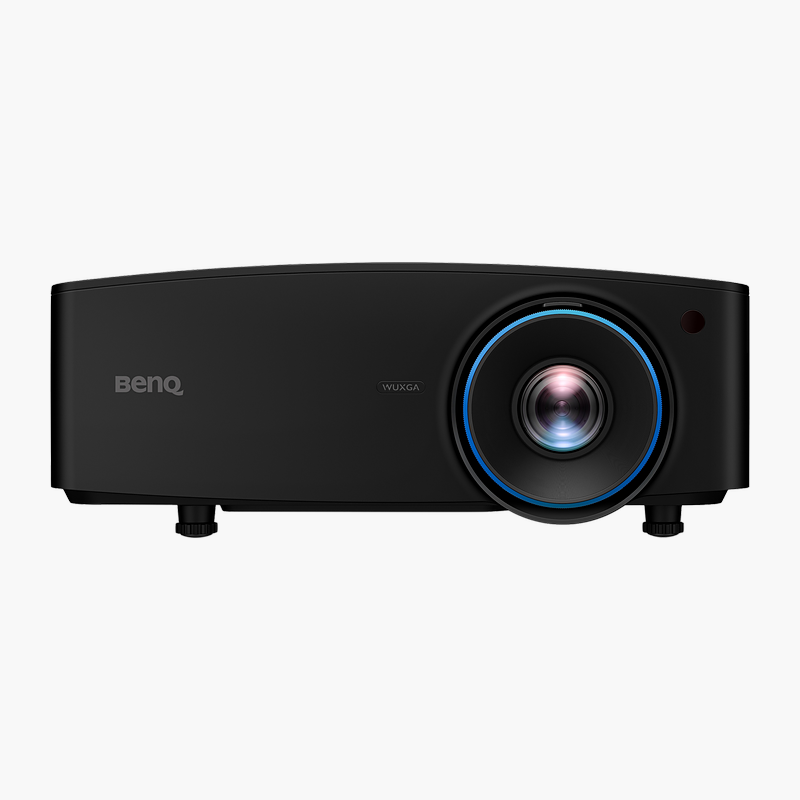

BenQ LU935ST WUXGA Short Throw Laser Simulation Projector (LU935ST-001) – 5,500 Lumens, 0.81–0.89:1 Throw

The BenQ LU935ST is a WUXGA short throw laser simulation projector with 5,500 ANSI lumens and a 0.81–0.89:1 throw ratio. It is built for golf and sports simulators, immersive rooms and short-distance installations, using a laser light source for long, maintenance-free operation.

A bigger, brighter picture.

A Bright, Shadow-Free Image for Simulator Bays

Simulator rooms are short and the player stands between the projector and the screen, so standard projectors cast shadows, need long throw distances and struggle with bright, detailed graphics.

The BenQ LU935ST uses a 0.81–0.89:1 throw ratio to fill the screen from a short distance, ceiling-mounted above or behind the player, while 5,500 ANSI lumens and a laser light source keep the picture bright and consistent for long sessions.

Flexible Setup

1.1x optical zoom, H ±23%, V ±60% lens shift and ±30° vertical and horizontal keystone correction make it easy to fit the image squarely to your screen.

Connections and Control

Inputs include 2x HDMI, HDBaseT, VGA in/out, audio in/out, LAN, RS-232. A built-in 2x 10W speaker covers basic audio.

Setup Instructions

How to Set Up the BenQ LU935ST

1. Position or ceiling-mount the projector at the distance that matches your screen size and throw ratio.
2. Connect your source with HDMI (or another available input) and plug in the power cable.
3. Power on, then adjust zoom, focus and keystone so the image fills the screen squarely.
4. Select the picture mode that suits your room and content, and enable Eco mode for quieter, longer-lasting use.
