Cisco SFP-10G-SR 10GBASE-SR SFP+ Transceiver Module – 850nm, 300m Multimode, LC (Used – Grade A)

Short-reach 10G fiber links for Cisco switches and servers. Tested Grade A used module.

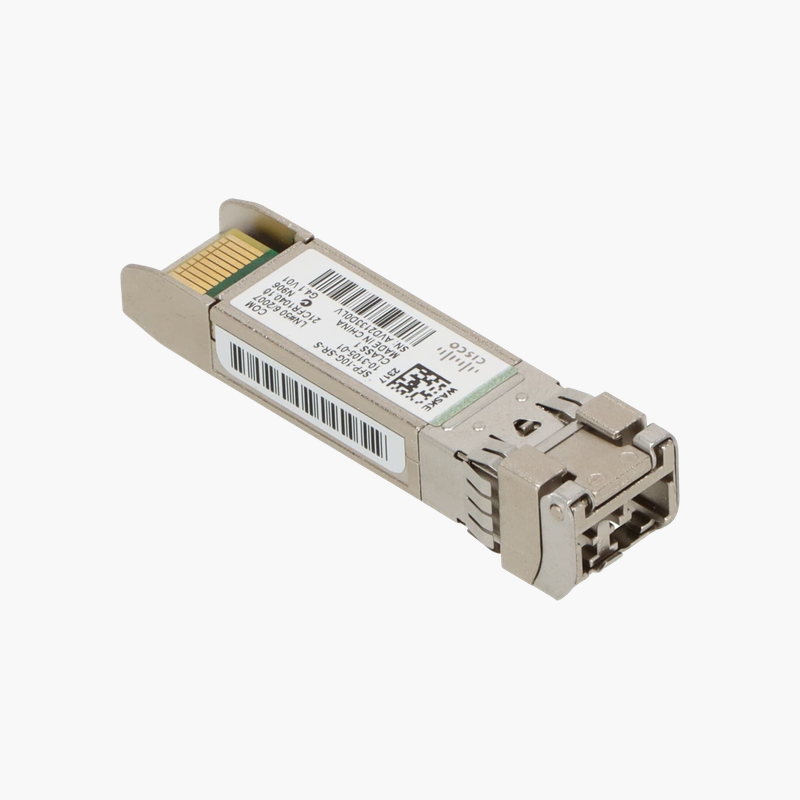

The Cisco SFP-10G-SR is a 10GBASE-SR SFP+ transceiver that carries 10 Gbps Ethernet over multimode fiber using an 850 nm laser and duplex LC connector. It is used for 10G links between access, aggregation and server switches up to 300 m on OM3 fiber. This unit is used, tested and in Grade A condition.

Choosing the Right Optic for Reliable Fiber Links

As switches and servers move to 10G, copper cabling and 1G uplinks become bottlenecks, and long copper runs are prone to interference. The wrong optic causes link errors, unsupported-transceiver warnings or links that never come up.

The SFP-10G-SR follows the IEEE 10GBASE-SR standard using an 850 nm laser, so it links reliably with any compliant optic at the other end. Over multimode fiber it reaches 300 m on OM3 and 400 m on OM4, covering most links inside a building or data center.

As a Cisco optic, it is recognized by Cisco IOS, IOS XE and NX-OS without needing the “service unsupported-transceiver” workaround, and digital optical monitoring reports light levels for troubleshooting.

10G SR for Data Center and Campus Links

SFP-10G-SR is one of the most widely used Cisco optics, fitting Catalyst, Nexus and ISR SFP+ ports, as well as servers and storage with SFP+ NICs that support Cisco-coded modules.

Hot-Swappable with Built-in Diagnostics

The module can be inserted or removed while the switch is running. DOM values such as transmit power, receive power and temperature are available through “show interfaces transceiver”, making it easier to find dirty connectors or damaged fiber. Each used module is tested for link and DOM readings before shipping.

How to Install the Cisco SFP-10G-SR

1. Confirm the host port is an SFP+ port that supports 10GBASE-SR and that the other end uses a matching optic.
2. Remove the dust plug and insert the transceiver into the port until it clicks into place; the latch should face the correct direction for the port.
3. Clean the fiber connectors, then connect a duplex LC multimode (OM3/OM4) patch cord, crossing transmit and receive.
4. Check the link with “show interfaces status” and verify optical levels with “show interfaces transceiver”.
