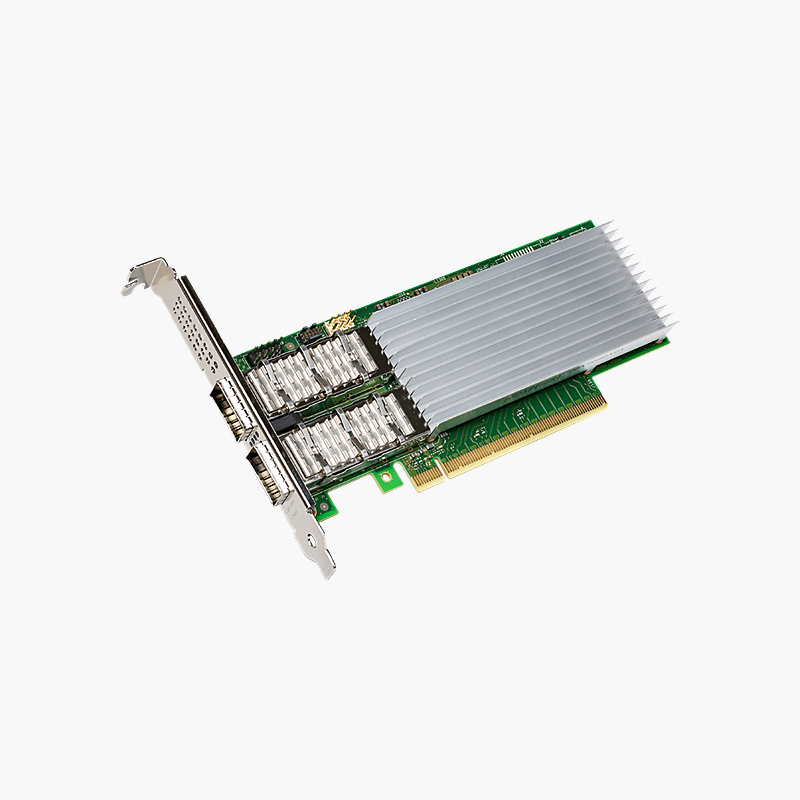

Dell Intel E810-CQDA2 Dual Port 100GbE QSFP28 Network Adapter, Low Profile (540-BDDS) – PCIe Gen4 low-profile adapter

The Dell Intel E810-CQDA2 Dual Port 100GbE QSFP28 Network Adapter, Low Profile is a server network adapter with 2x 100GbE QSFP28 ports based on the Intel E810 controller, in a PCIe Gen4 low-profile adapter format. It adds high-throughput, low-latency Ethernet for virtualisation hosts, storage networks and busy application servers. Dell part DWNRF.

More bandwidth for every server.

Faster Server Connectivity for Data-Heavy Workloads

Onboard network ports quickly become a bottleneck when servers host virtual machines, storage traffic and backups at the same time.

The Dell Intel E810-CQDA2 Dual Port 100GbE QSFP28 Network Adapter, Low Profile adds 2x 100GbE through QSFP28 connections, giving each server more bandwidth and the ability to separate management, storage and application traffic.

Ports and Controller

2x 100GbE QSFP28 ports on the Intel E810 controller. SFP-based ports need compatible transceivers or DAC cables.

Form Factor and Compatibility

PCIe Gen4 low-profile adapter. Confirm the server model and slot type before installing.

Setup Instructions

How to Install the Dell Intel E810-CQDA2 Dual Port 100GbE QSFP28 Network Adapter, Low Profile

1. Power down the server, unplug it and use anti-static precautions.
2. Install the adapter in the matching slot and secure it.
3. Power on and install or update the network driver and firmware.
4. Connect cables or transceivers and configure the interfaces in the OS or hypervisor.
