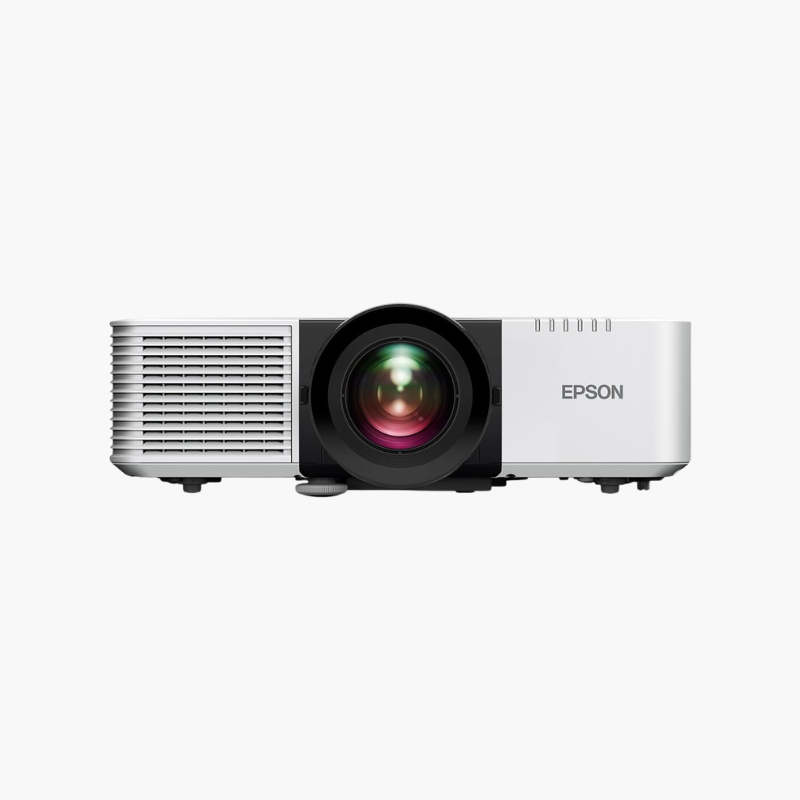

Epson PowerLite L530U WUXGA 3LCD Laser Projector – 5200 Lumens, Lens Shift, Built-in Wireless, HDBaseT

The Epson PowerLite L530U is a 5,200-lumen WUXGA 3LCD laser projector for large classrooms, lecture halls, and conference rooms. It offers a 20,000-hour laser, 1.6x zoom with lens shift, and built-in wireless with Miracast for bright, reliable, low-maintenance large-format display.

Deep-Dive Story & Problem/Solution

Large Rooms Need Lasting Brightness and Painless Installation

In lecture halls and big conference rooms, a projector is in use most of the day. Lamp-based units dim noticeably within a year and need lamp and filter service that interrupts schedules.

The L530U uses a laser light source rated for 20,000 hours and a 3-chip 3LCD engine delivering 5,200 lumens of both color and white brightness. A dynamic contrast ratio up to 2,500,000:1 keeps text crisp.

Installation is eased by a 1.35–2.20 throw ratio, 1.6x zoom, and lens shift of ±50% vertical and ±20% horizontal. Built-in wireless and Miracast remove the need for extra presentation hardware.

5,200 Lumens at WUXGA

The 16:10 panel shows 1920 x 1200 pixels and accepts 4K input, supporting image sizes from 50 to 500 inches.

Quiet Laser Operation and Connectivity

Fan noise is 31dB in normal mode and lower in quiet modes. HDMI, HDBaseT, and network connections integrate with AV systems, and a 10W speaker is included.

Setup Instructions

How to Install the Epson PowerLite L530U

1. Mount the projector at 1.35 to 2.20 times the screen width.
2. Connect HDMI or HDBaseT sources and join the projector to the network.
3. Adjust zoom, focus, and lens shift to frame the image.
4. Set the light source mode and enable screen mirroring if required.
