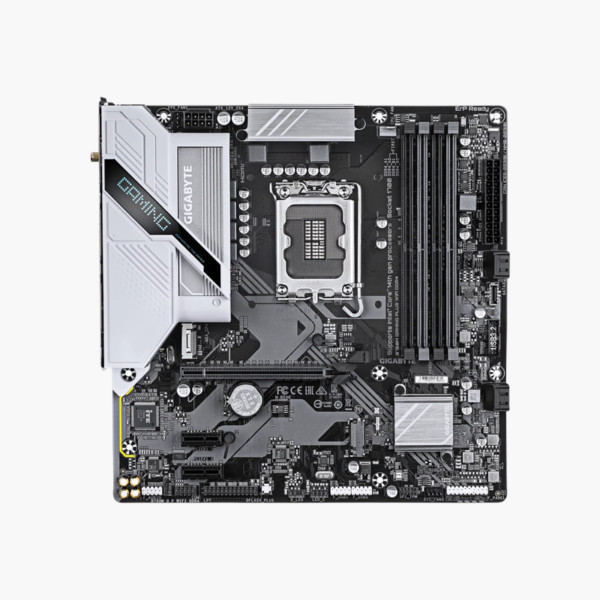

Gigabyte B760M Gaming Plus WiFi DDR4 Micro-ATX Motherboard — Intel LGA 1700, B760 Chipset

An affordable Intel 12th–14th Gen board that keeps your DDR4 memory in service.

The Gigabyte B760M Gaming Plus WiFi DDR4 is a Micro-ATX motherboard for Intel LGA 1700 processors. It supports 12th to 14th Gen Core CPUs, up to 128GB of DDR4, two PCIe 4.0 M.2 SSDs and Wi-Fi 6. It suits budget gaming, home-office and upgrade builds where reusing DDR4 saves money.

Upgrading to Modern Intel CPUs Without Buying New Memory

Moving to a 13th or 14th Gen Intel processor often means a full platform change: motherboard, CPU and DDR5 memory. For many users, the memory alone adds a large share to the upgrade cost.

The B760M Gaming Plus WiFi DDR4 accepts standard DDR4 DIMMs, up to 128GB across four slots, with XMP support for overclocked kits up to 5333 MT/s depending on CPU and memory. You get current Intel processors and PCIe 4.0 storage while keeping the memory you already own.

PCIe 4.0 Graphics and Storage

A PCIe 4.0 x16 slot wired to the CPU handles current graphics cards at full bandwidth. Two M.2 slots support PCIe 4.0 NVMe drives (one from the CPU and one from the chipset), and four SATA 6Gb/s ports support RAID 0, 1, 5 and 10.

Connectivity for Everyday Use

A Realtek Wi-Fi 6 module with Bluetooth 5.3 and Realtek Gigabit LAN cover networking. HDMI and DisplayPort outputs support up to three displays with Intel integrated graphics, and the rear panel includes USB 3.2 Gen 1 ports and a PS/2 port for legacy keyboards.

Setup Instructions

How to Install the Gigabyte B760M Gaming Plus WiFi DDR4

1. Install the LGA 1700 processor, DDR4 memory (slots A2 and B2 for two DIMMs) and the M.2 SSD in the CPU-connected slot.
2. Mount the board in a Micro-ATX or ATX case and connect the 24-pin ATX, 8-pin CPU power and front-panel headers.
3. Install the graphics card, attach the Wi-Fi antennas to the SMA connectors, and power on into the BIOS.
4. Enable XMP, update the BIOS to the latest version (required for some 14th Gen CPUs), and install Gigabyte’s chipset, LAN and Wi-Fi drivers.
