IBM 38L6764 6TB 7200 RPM 3.5″ NL-SAS Enterprise Hard Drive for System Storage DCS3700

6TB of IBM-matched nearline SAS capacity for enterprise storage arrays.

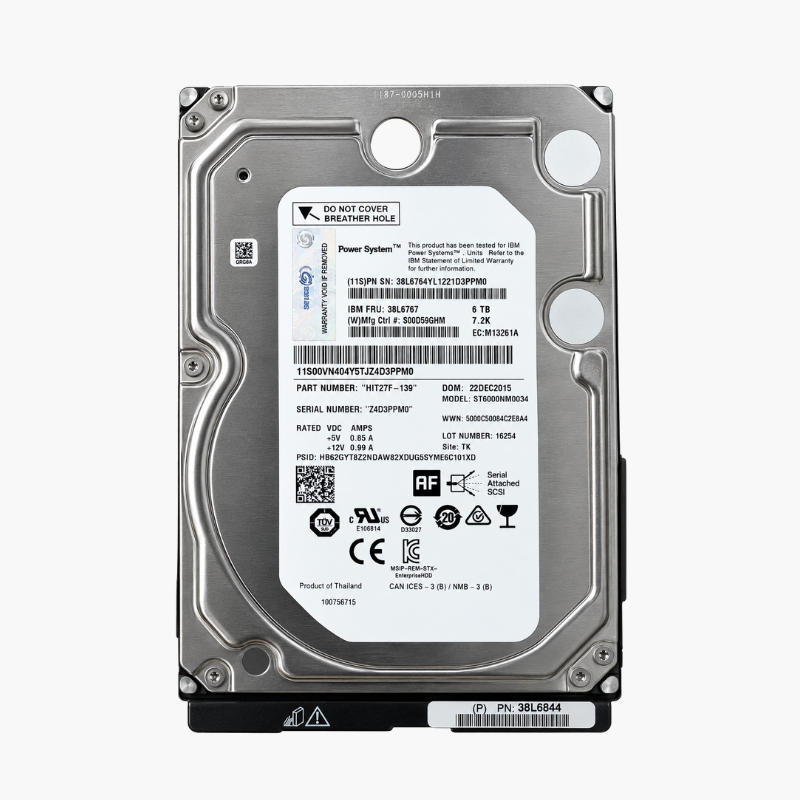

The IBM 38L6764 is a 6TB, 7,200 RPM, 3.5-inch nearline SAS (NL-SAS) enterprise hard drive with a 128MB cache. It is associated with the IBM System Storage DCS3700 and is designed for organizations expanding or maintaining IBM storage with a matched part number for backup, archive and capacity-focused workloads.

Why NL-SAS Is the Capacity Tier of Choice in Enterprise Storage

Enterprise storage usually splits data into tiers. Fast 10K and 15K SAS drives or SSDs handle active databases, while large nearline drives hold backups, archives, video and other data that is written once and read occasionally. Using expensive performance drives for that bulk data wastes budget.

Nearline SAS combines a high-capacity 7,200 RPM mechanism with a SAS interface. Compared with a SATA drive of similar capacity, NL-SAS works natively with SAS controllers and enclosures and is built for enterprise array environments, which is why storage vendors such as IBM use it for their capacity tiers.

Buying the exact IBM part number matters in IBM storage. Arrays such as the DCS3700 expect IBM firmware, and a matched drive integrates into existing volume groups without the recognition issues generic drives can cause.

High Capacity for Backup, Archive and Big Data

Each 38L6764 adds 6TB per bay. In a high-density enclosure, that translates into large usable capacity for backup targets, compliance archives, media repositories and analytics data sets, with the 7,200 RPM spindle and 128MB cache providing solid sequential throughput.

Enterprise Construction for Continuous Operation

The drive is built for 24/7 operation in multi-drive arrays, where heat and vibration from neighboring drives are constant. Hot-swap support in compatible enclosures means you can replace or add drives without taking the storage system offline.

How It Works / Setup Instructions

How to Install the IBM 38L6764 in Your Storage System

1. Confirm that your IBM storage system or SAS enclosure supports 6TB NL-SAS drives and the 38L6764 part number.
2. Fit the drive into the correct IBM drive carrier for your enclosure, if it is not already mounted.
3. Insert the carrier into an empty bay while the system is running; compatible enclosures support hot insertion.
4. Use your storage management software to verify the drive, then assign it to a volume group, disk pool or hot spare role.
