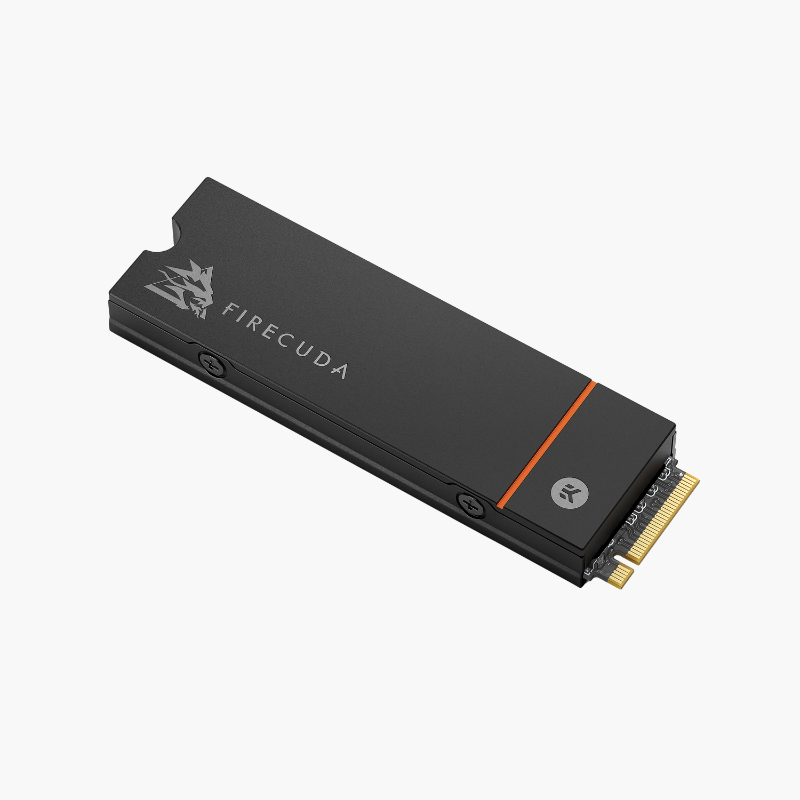

Seagate FireCuda 530 500GB NVMe SSD (ZP500GM3A013) – PCIe Gen4 M.2 2280, Up to 7,000MB/s

A high-endurance Gen4 boot drive that makes every load screen shorter.

The Seagate FireCuda 530 500GB is a PCIe Gen4 x4 NVMe M.2 2280 SSD with a Phison E18 controller and 3D TLC NAND. Reading at up to 7,000MB/s with a 640 TBW endurance rating, it is an ideal boot and game drive for gaming PCs, workstations and the PS5.

Why Your Boot Drive Speed Matters More Than Its Size

The drive that holds your operating system and most-played games handles the most random reads and writes in your system. On a hard drive or slow SATA SSD, that shows up as long boots, stutter when assets stream in, and sluggish app launches.

The FireCuda 530 500GB puts that workload on a Gen4 NVMe drive with DRAM and TLC NAND. It boots and loads quickly, and its 640 TBW rating means frequent installs, updates and temporary files will not wear it out prematurely.

Gen4 Speed for OS and Games

At up to 7,000MB/s read and 1M random read IOPS, the drive loads Windows, apps and games quickly and handles DirectStorage-enabled titles well. It is also backward compatible with PCIe 3.0 systems.

Engineered for Endurance

The 640 TBW rating and 1.8-million-hour MTBF are well above typical 500GB drives. SeaTools software provides SMART monitoring and firmware updates for long-term reliability.

Setup Instructions

How to Install the Seagate FireCuda 530 500GB

1. Shut down and unplug the PC or PS5, and discharge static by touching a grounded metal surface.
2. Locate an M.2 2280 M-key PCIe slot; Gen4 slots deliver full speed.
3. Insert the SSD, press it flat and secure it with the screw; add a heatsink for PS5 or if your board provides one.
4. Initialize the drive in Disk Management, clone your existing OS, or format it from the PS5 prompt.
