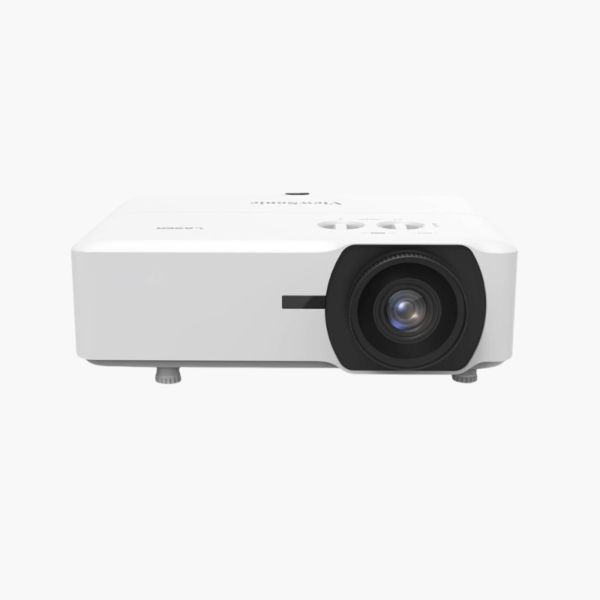

ViewSonic LS850WU WUXGA Laser Installation Projector – 5000 ANSI Lumens, 1.6x Zoom, Lens Shift, HDBaseT

The ViewSonic LS850WU is a 5,000-lumen WUXGA laser projector for conference rooms, lecture theatres, and large classrooms. It combines a 20,000-hour laser with a 1.6x zoom, horizontal and vertical lens shift, and HDBaseT, giving installers wide placement options and dependable long-term operation.

Deep-Dive Story & Problem/Solution

Replacing an Old Lamp Projector Without Rebuilding the Room

Many organisations want to retire lamp-based projectors but cannot move the mount, the screen, or the cabling. If the new unit’s lens does not cover the old throw distance, the upgrade turns into a construction project.

The LS850WU’s 1.36–2.18:1 zoom spans most standard-throw positions, and its lens shift, ±23% horizontal and ±50% vertical, re-centres the image without tilting. Installers can usually hang it on the existing bracket and align it optically.

The laser phosphor light source is rated for 20,000 hours and delivers 5,000 ANSI lumens with a 3,000,000:1 dynamic contrast ratio. Maintenance drops to almost nothing compared with the lamp unit it replaces.

Bright WUXGA Images for Large Audiences

The 16:10 WUXGA panel shows detailed spreadsheets and full HD video at sizes up to 300 inches. Horizontal and vertical keystone fine-tune geometry.

Extensive Connectivity and Control

Two HDMI inputs, HDBaseT, VGA in/out, composite, S-Video, two USB ports, RS-232, and LAN accommodate current and legacy sources as well as room control platforms.

Setup Instructions

How to Install the ViewSonic LS850WU

1. Position the projector at 1.36 to 2.18 times the screen width.
2. Connect HDMI or HDBaseT sources and attach LAN or RS-232 control.
3. Frame the image using zoom and lens shift, then focus.
4. Select the light source mode and configure network management settings.
