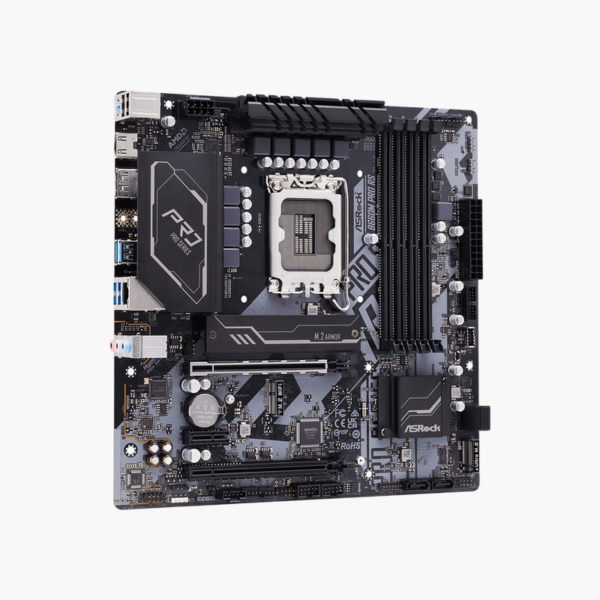

ASRock B660M Pro RS Micro-ATX Motherboard — LGA 1700, DDR4, Dual PCIe 4.0 M.2, HDMI/DisplayPort

A well-equipped Micro-ATX Intel board that keeps your DDR4 and adds PCIe 4.0 storage.

The ASRock B660M Pro RS is a Micro-ATX motherboard for Intel 12th and 13th Gen processors on LGA 1700. It supports up to 128GB of DDR4, two PCIe 4.0 x4 M.2 slots, two PCIe x16 slots and HDMI and DisplayPort outputs. It suits gamers and home-office users building a compact, cost-conscious Intel system.

Modern Intel Platform Without the DDR5 Premium

Intel’s 12th and 13th Gen processors give a large jump in performance, but DDR5 memory and premium motherboards can double the upgrade cost. Many builders already own good DDR4 kits.

The B660M Pro RS supports DDR4 across four slots, up to 128GB, while delivering PCIe 4.0 for both graphics and storage. You get the CPU upgrade and fast NVMe drives without replacing memory.

PCIe 4.0 Graphics and Storage

The primary PCIe x16 slot runs at PCIe 4.0 from the CPU, and two M.2 slots support PCIe 4.0 x4 NVMe SSDs. A second x16-size slot and a PCIe x1 slot accept expansion cards, while four SATA3 ports handle additional drives.

Solid Everyday Connectivity

HDMI and DisplayPort outputs support dual displays with Intel integrated graphics. USB 3.2 Gen 1 and USB 2.0 ports, onboard LAN, HD audio and the Phantom Gaming-inspired Pro RS heatsink design cover daily use.

Setup Instructions

How to Install the ASRock B660M Pro RS

1. Install the LGA 1700 processor and cooler, then fit DDR4 memory (A2 and B2 for two sticks) and your M.2 SSD before mounting the board.
2. Mount the board in the case and connect the 24-pin ATX, CPU power and front-panel headers.
3. Install the graphics card in the top PCIe 4.0 x16 slot and connect SATA drives.
4. Power on into the UEFI BIOS, enable the XMP/EXPO memory profile, update the BIOS using Instant Flash, and install ASRock chipset, LAN and audio drivers.
