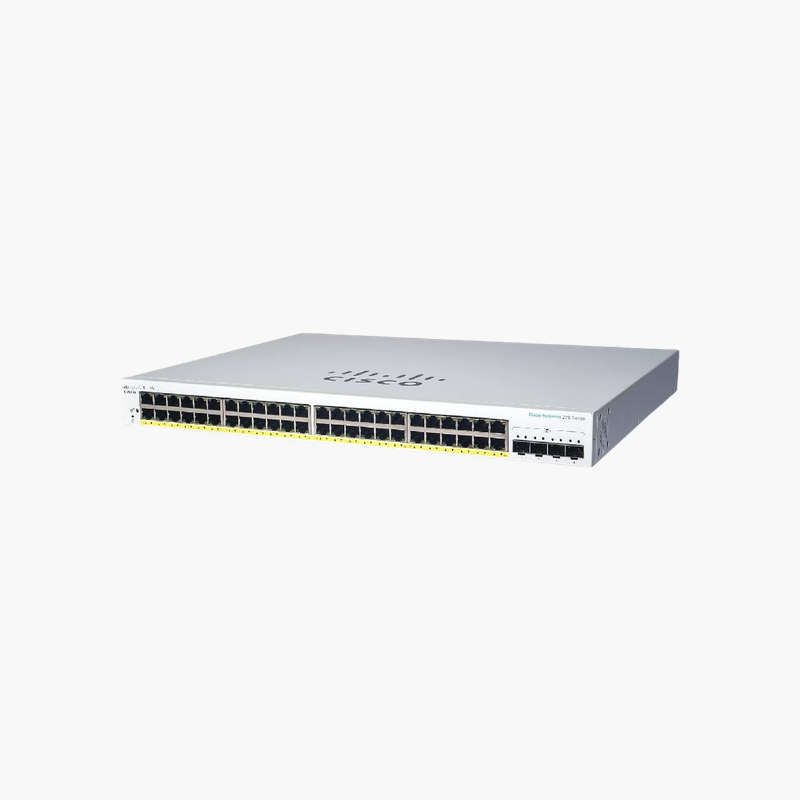

Cisco Business CBS220-48P-4G 48-Port Gigabit PoE+ Smart Switch (CIBS22048P4G) – 382W PoE, 4x 1G SFP

SKU: CIBS22048P4G

30-Day Hassle Free Returns
Secure Payment Options

Price on RequestRequest a quote for volume pricing, availability and lead time.

Key Value Highlights

48x Gigabit PoE+ – Gigabit connections for PCs, printers, cameras and access points.
382W PoE budget – 48x PoE+ ports power access points, IP cameras and phones over the data cable – no separate power adapters.
4x 1G SFP uplinks – Fast links to routers, core switches or other floors.
Smart managed features – VLANs, QoS, link aggregation and monitoring for growing networks.
19-inch rackmount design – Installs cleanly in standard network racks and cabinets.

Compare

Add to wishlist

Description

The Cisco Business CBS220-48P-4G 48-Port Gigabit PoE+ Smart Switch is a smart managed PoE switch with 48x Gigabit PoE+ and 4x 1G SFP uplinks. It supplies 48x PoE+ power from a 382W budget for access points, IP cameras and VoIP phones. It is built for growing small and medium business networks. Management features help segment and prioritise network traffic.

More ports, less clutter.

Power and Connect Devices Over One Cable

Running separate power to every access point, camera and phone adds cost and limits where devices can go, while power bricks clutter ceilings and walls.

The Cisco Business CBS220-48P-4G 48-Port Gigabit PoE+ Smart Switch delivers 48x PoE+ power from a 382W budget over standard Ethernet, so devices can be installed wherever a network cable can reach.

Ports and Performance

Ports: 48x Gigabit PoE+. Uplinks: 4x 1G SFP. PoE: 48x PoE+, 382W budget. SFP/SFP+ ports require compatible transceivers or DAC cables.

Management and Installation

VLANs, QoS, link aggregation and monitoring for growing networks. Installs cleanly in standard network racks and cabinets. Web UI, Cisco Business app and dashboard management.

Setup Instructions

How to Set Up the Cisco Business CBS220-48P-4G 48-Port Gigabit PoE+ Smart Switch

Mount the switch and connect power.
Connect an uplink port to your router or core switch.
Open the web interface and adopt or log in to the switch, then update the firmware.
Create VLANs and QoS rules, then connect your devices.

Overview

Brand	Cisco
Model	Business CBS220-48P-4G 48-Port Gigabit PoE+ Smart Switch
Product Type	Smart Managed PoE Switch
Management	Smart Managed
Ports	48x Gigabit PoE+
Uplinks	4x 1G SFP
Port Speed	10/100/1000 Mbps
PoE Ports	48x PoE+
PoE Standard	IEEE 802.3af/at PoE+
PoE Budget	382W
Mounting	19-inch rackmount
Features	Web UI, Cisco Business app and dashboard management
Part Number	CIBS22048P4G
Condition	Brand New
In the Box	Switch, power cord or adapter, rack-mount kit, quick installation guide

Is the Cisco Business CBS220-48P-4G 48-Port Gigabit PoE+ Smart Switch compatible with my PoE devices?

How do I maintain the Cisco Business CBS220-48P-4G 48-Port Gigabit PoE+ Smart Switch?

How is it managed?

Smart managed vs. fully managed switch – which do I need?
