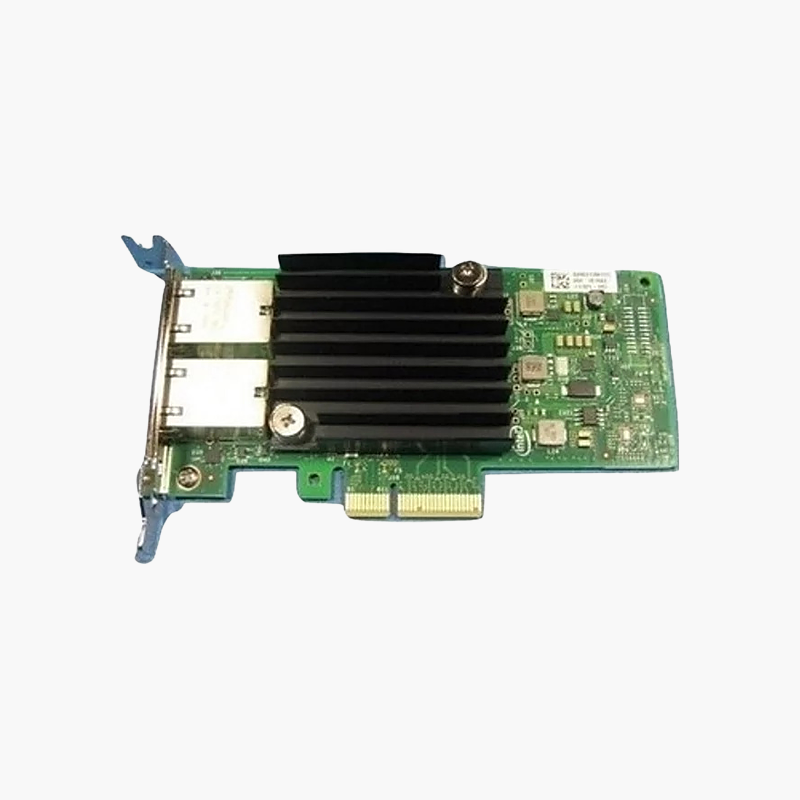

Dell Intel X550-T2 Dual Port 10GbE RJ45 Network Adapter, Low Profile (540-BBRG) – PCIe low-profile adapter

The Dell Intel X550-T2 Dual Port 10GbE RJ45 Network Adapter, Low Profile is a server network adapter with 2x 10GbE RJ45 (10GBASE-T) ports based on the Intel X550 controller, in a PCIe low-profile adapter format. It adds high-throughput, low-latency Ethernet for virtualisation hosts, storage networks and busy application servers. Dell part C4D5P.

More bandwidth for every server.

Faster Server Connectivity for Data-Heavy Workloads

Onboard network ports quickly become a bottleneck when servers host virtual machines, storage traffic and backups at the same time.

The Dell Intel X550-T2 Dual Port 10GbE RJ45 Network Adapter, Low Profile adds 2x 10GbE through RJ45 (10GBASE-T) connections, giving each server more bandwidth and the ability to separate management, storage and application traffic.

Ports and Controller

2x 10GbE RJ45 (10GBASE-T) ports on the Intel X550 controller. RJ45 ports use standard Cat6/Cat6a cabling.

Form Factor and Compatibility

PCIe low-profile adapter. Confirm the server model and slot type before installing.

Setup Instructions

How to Install the Dell Intel X550-T2 Dual Port 10GbE RJ45 Network Adapter, Low Profile

1. Power down the server, unplug it and use anti-static precautions.
2. Install the adapter in the matching slot and secure it.
3. Power on and install or update the network driver and firmware.
4. Connect cables or transceivers and configure the interfaces in the OS or hypervisor.
