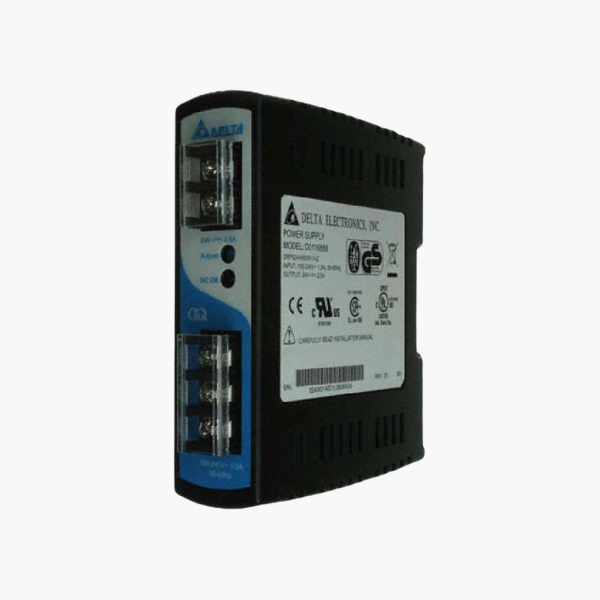

Delta DRP024V060W1AZ (D0116888) CliQ DIN Rail Power Supply — 24V DC 2.5A, 60W

An industrial-grade 24V DIN rail supply with wide AC and DC input.

The Delta DRP024V060W1AZ (Delta part D0116888) is a 60W CliQ series DIN rail power supply. It delivers 24V DC at 2.5A and accepts 85–264V AC or 120–375V DC input. It carries UL 508, TUV, CE and RoHS approvals, which suits automation panels, PLC systems and machine control.

Industrial Approvals and Wide Input for Demanding Panels

Panels for industrial machinery often need documented safety approvals, and some installations run on DC bus power rather than AC mains. A supply without the right approvals can hold up inspection, and an AC-only unit limits where the panel can be installed.

The DRP024V060W1AZ comes from Delta’s CliQ industrial range with UL 508 listing, TUV, CE and RoHS compliance. It accepts both 85–264V AC and 120–375V DC, so one supply covers AC and DC installations.

Right-Sized 60W Output

A 2.5A, 24V output powers PLC CPUs, I/O modules, sensors and relay coils in small to medium panels. Built-in overload and short-circuit protection keep downstream devices safe.

Compact DIN Rail Design

The narrow housing mounts on standard TS-35 DIN rails next to other components, and screw terminals make wiring straightforward during panel builds and replacements.

Setup Instructions

How to Install the Delta DRP024V060W1AZ

1. Switch off and isolate the AC supply to the control panel, and confirm the circuit is de-energized before working.
2. Mount the unit on the DIN rail (or panel) with the recommended spacing above and below for natural convection cooling.
3. Wire L, N and protective earth to the input terminals, then connect the +V and -V outputs to the load using correctly sized wire and ferrules.
4. Restore power, check the DC OK LED, and measure the output voltage at the load; trim it with the adjustment potentiometer if required.
