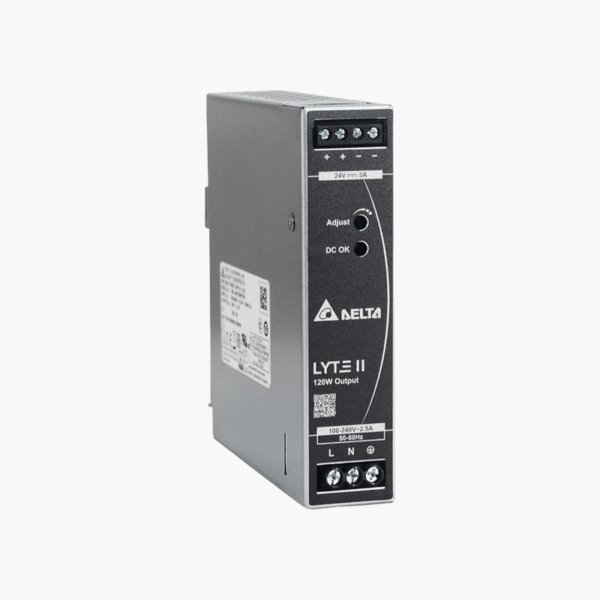

Delta DRL-24V120W1EN 120W DIN Rail Power Supply — 24V DC 5A for Industrial Automation

A cost-effective 24V, 5A DIN rail supply from Delta’s Lyte series.

The Delta DRL-24V120W1EN is a 120W DIN rail power supply from Delta’s Lyte (DRL) series. It delivers 24V DC at 5A from a universal 85–264V AC input and mounts on standard DIN rails. It suits panel builders and automation engineers powering PLCs, HMIs, sensors and actuators.

Reliable 24V Power for Control Panels

A 24V DC supply is the heart of most control panels. If it sags under load or trips on start-up current, PLCs reset, relays drop out and machines stop without a clear cause.

The DRL-24V120W1EN provides 5A of regulated 24V output with overload and short-circuit protection. A 120W rating covers a typical small to medium panel with a PLC, HMI, I/O modules and sensors.

Fast DIN Rail Installation

The housing clips onto standard TS-35 DIN rails, and screw terminals simplify wiring. This reduces panel build time compared with chassis-mount supplies.

Universal Input for Global Machines

An 85–264V AC input range means machine builders can ship the same panel design worldwide without changing the supply or setting a voltage selector.

Setup Instructions

How to Install the Delta DRL-24V120W1EN

1. Switch off and isolate the AC supply to the control panel, and confirm the circuit is de-energized before working.
2. Mount the unit on the DIN rail (or panel) with the recommended spacing above and below for natural convection cooling.
3. Wire L, N and protective earth to the input terminals, then connect the +V and -V outputs to the load using correctly sized wire and ferrules.
4. Restore power, check the DC OK LED, and measure the output voltage at the load; trim it with the adjustment potentiometer if required.
