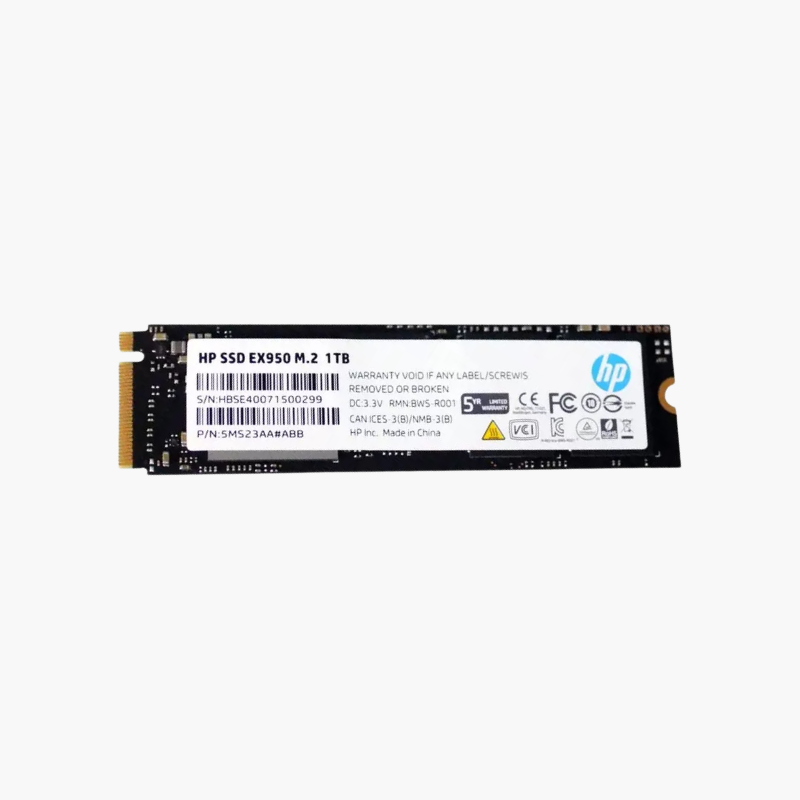

HP EX950 1TB NVMe M.2 2280 SSD (5MS23AA#ABC) – PCIe 3.1 x4, Up to 3,500MB/s, 3D TLC

Fast, cache-equipped Gen3 NVMe for gaming PCs and workstations.

The HP EX950 1TB is an M.2 2280 PCIe 3.1 x4 NVMe SSD with 3D TLC NAND and a 1GB cache. Reading at up to 3,500MB/s and writing at up to 2,900MB/s with 410K random read IOPS, it is a fast, reliable boot and game drive for desktops and laptops.

Why a Cache-Equipped NVMe Drive Feels Faster

DRAM-less budget SSDs can feel quick in short tests but slow down during heavy multitasking or large transfers because they lack fast memory for mapping data.

The EX950 includes a 1GB cache and TLC NAND, so random performance and sustained writes stay strong. Boots, game loads and app launches remain quick even under load.

Top Gen3 Speed

With up to 3,500MB/s reads and 410K random read IOPS, the EX950 delivers fast boots, quick game loading and smooth everyday performance.

Dependable Reliability

An MTBF of up to 2 million hours and TLC NAND make the EX950 a durable choice for daily gaming and work.

Setup Instructions

How to Install the HP EX950 1TB

1. Shut down and unplug the PC or laptop and ground yourself.
2. Locate an M.2 2280 M-key NVMe slot.
3. Insert the SSD, press it flat and secure it with the screw.
4. Clone your OS or install Windows, then set the drive as the boot device.
