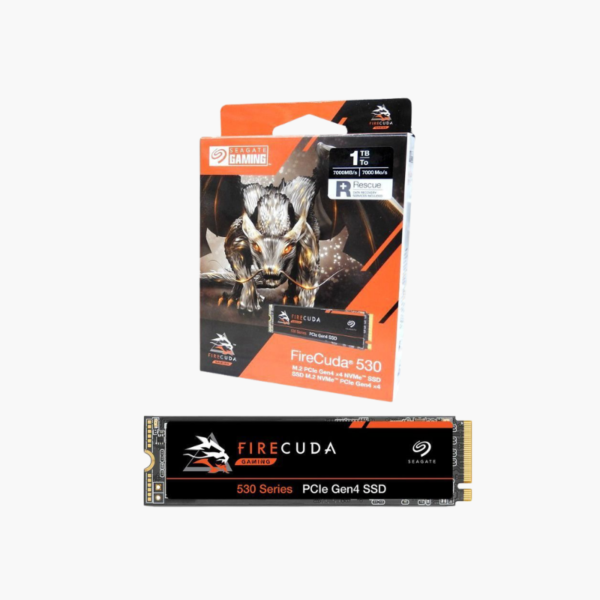

Seagate FireCuda 530 1TB NVMe SSD (ZP1000GM3A013) – PCIe Gen4 M.2 2280, Up to 7,300MB/s

Gen4 speed that holds up under heavy writes, not just in short benchmarks.

The Seagate FireCuda 530 1TB is an M.2 2280 PCIe Gen4 x4 NVMe SSD for gamers, creators and PC builders. It pairs a Phison E18 controller with 3D TLC NAND to deliver up to 7,300MB/s reads and a 1,275 TBW endurance rating, so load times drop and large file work stays fast.

Why Mid-Range NVMe Drives Slow Down When You Need Them Most

Many budget NVMe SSDs post high peak speeds, then drop sharply once their SLC cache fills during a large game install, a 4K video export or a big file copy. QLC-based drives and DRAM-less designs are especially prone to this, and their lower endurance ratings limit how much heavy writing they can absorb over their service life.

The FireCuda 530 avoids those trade-offs with a Phison E18 eight-channel controller, DRAM cache and high-endurance 3D TLC NAND. Sustained write throughput stays far higher than QLC alternatives, and the 1TB model is rated for 1,275 terabytes written, giving creators and power users more headroom for daily large transfers.

Gen4 Performance for Gaming and Content Creation

With up to 7,300MB/s reads, the FireCuda 530 fully uses a PCIe 4.0 x4 slot on modern AMD and Intel platforms. Games install and launch faster, 4K and 8K timelines scrub more smoothly, and project files open with less waiting. On older PCIe 3.0 systems the drive still works, running at Gen3 speeds.

Built for Heavy Workloads and Long Service Life

The 1,800,000-hour MTBF and 1,500G non-operating shock rating reflect a drive designed for continuous use. Low-power L1.2 support keeps idle draw under 5mW in laptops, and Seagate SeaTools software lets you monitor drive health, update firmware and check SMART data.

Setup Instructions

How to Install the Seagate FireCuda 530 1TB

1. Power off and unplug the PC (or fully shut down the PS5), then ground yourself to prevent static discharge.
2. Locate a free M.2 M-key slot that supports PCIe Gen4 x4 NVMe; check your motherboard manual for the best slot.
3. Insert the SSD at a slight angle, press it flat and secure it with the M.2 screw. For PS5, attach a heatsink first.
4. Power on, initialize the disk in Disk Management (GPT), create a volume, or format it from the PS5 storage menu.
