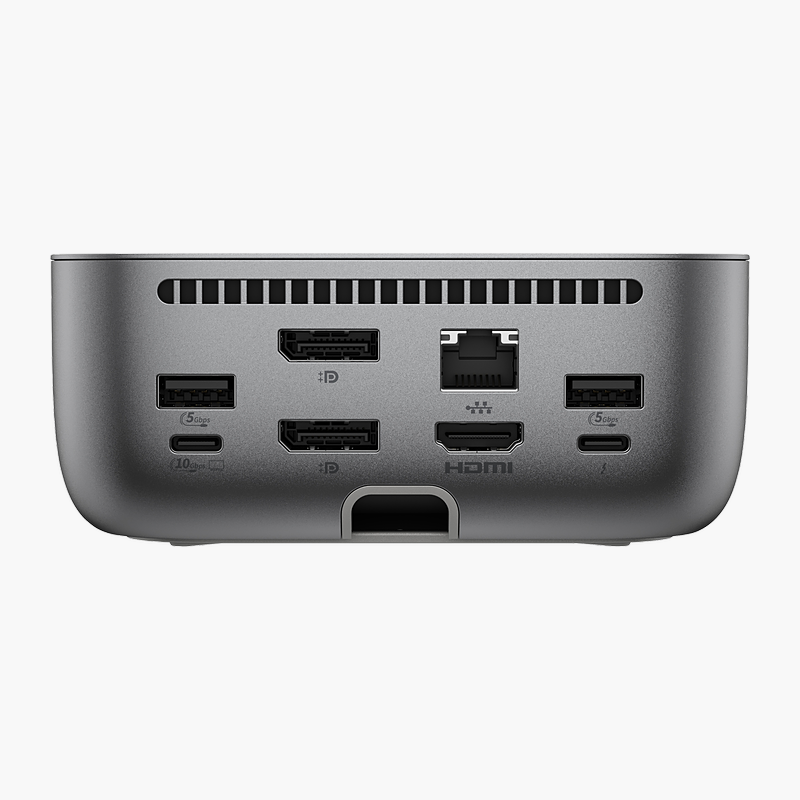

HP Thunderbolt 4 Ultra 280W G6 Dock (AW5M5UT) – 280W, 4 Displays, 2.5GbE

The HP Thunderbolt 4 Ultra 280W G6 Dock connects to your laptop over Thunderbolt 4 and adds HDMI, DisplayPort, USB-A, USB-C and 2.5GbE ports. It charges your laptop at up to 280W and drives up to 4 displays. It is built for one-cable desks with high-resolution monitors.

One connection, every port you need.

One Cable for Your Whole Desk Setup

Plugging a charger, monitor cables, a network cable and several USB devices into a laptop every time you sit down wastes time and wears out its ports.

The HP Thunderbolt 4 Ultra 280W G6 Dock connects through Thunderbolt 4, charges your laptop at up to 280W, drives up to 4 displays and adds HDMI, DisplayPort, USB-A, USB-C and 2.5GbE ports. Unplug one cable and the laptop is ready to go.

Multi-Display Support

Display support: Up to 4 displays (single 5K 60Hz, quad 4K 60Hz). Video outputs: 1x HDMI 2.1, 2x DisplayPort 1.4, 1x USB-C (DP Alt Mode). Display count and resolution depend on your laptop’s graphics and connection.

Ports for Every Peripheral

USB connectivity: 5x USB-A (3x 10Gbps, 2x 5Gbps); 3x USB-C 10Gbps. It also includes 2.5GbE for wired networking.

Setup Instructions

How to Set Up the HP Thunderbolt 4 Ultra 280W G6 Dock

1. Connect the 330W power adapter to the dock and a wall outlet.
2. Connect your monitors to the dock’s video outputs (1x HDMI 2.1, 2x DisplayPort 1.4, 1x USB-C (DP Alt Mode)).
3. Plug in your keyboard, mouse, Ethernet cable and other USB devices.
4. Connect the dock to your laptop’s Thunderbolt 4 / USB4 port with the included cable.
5. Open your display settings to arrange and extend your monitors.
