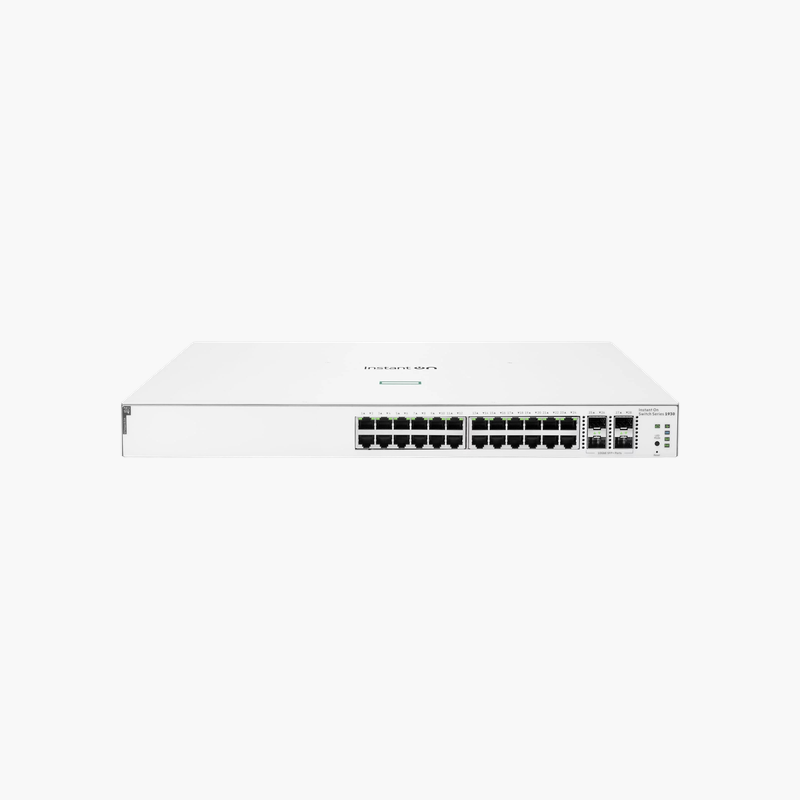

HPE Aruba Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch (JL681A) – 195W PoE, 4x 1G/10G SFP/SFP+, Smart Managed

The HPE Aruba Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch is a smart managed PoE switch with 24x Gigabit RJ45 PoE+ and 4x 1G/10G SFP/SFP+ uplinks. It supplies 24x PoE+ (Class 4) power from a 195W budget for access points, IP cameras and VoIP phones. It is built for growing small and medium business networks.

Reliable connections for every device.

Simplify Installs with Power over Ethernet

Running separate power to every access point, camera and phone adds cost and limits where devices can go, while power bricks clutter ceilings and walls.

The HPE Aruba Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch delivers 24x PoE+ (Class 4) power from a 195W budget over standard Ethernet, so devices can be installed wherever a network cable can reach.

Ports and Performance

Ports: 24x Gigabit RJ45 PoE+. Uplinks: 4x 1G/10G SFP/SFP+. PoE: 24x PoE+ (Class 4), 195W budget. SFP/SFP+ ports require compatible transceivers or DAC cables.

Management and Installation

VLANs, QoS, link aggregation and monitoring for growing networks. Installs cleanly in standard network racks and cabinets. Instant On cloud or local web management.

Setup Instructions

How to Set Up the HPE Aruba Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch

1. Mount the switch and connect power.
2. Connect an uplink port to your router or core switch.
3. Open the cloud dashboard or app and adopt or log in to the switch, then update the firmware.
4. Create VLANs and QoS rules, then connect your devices.
