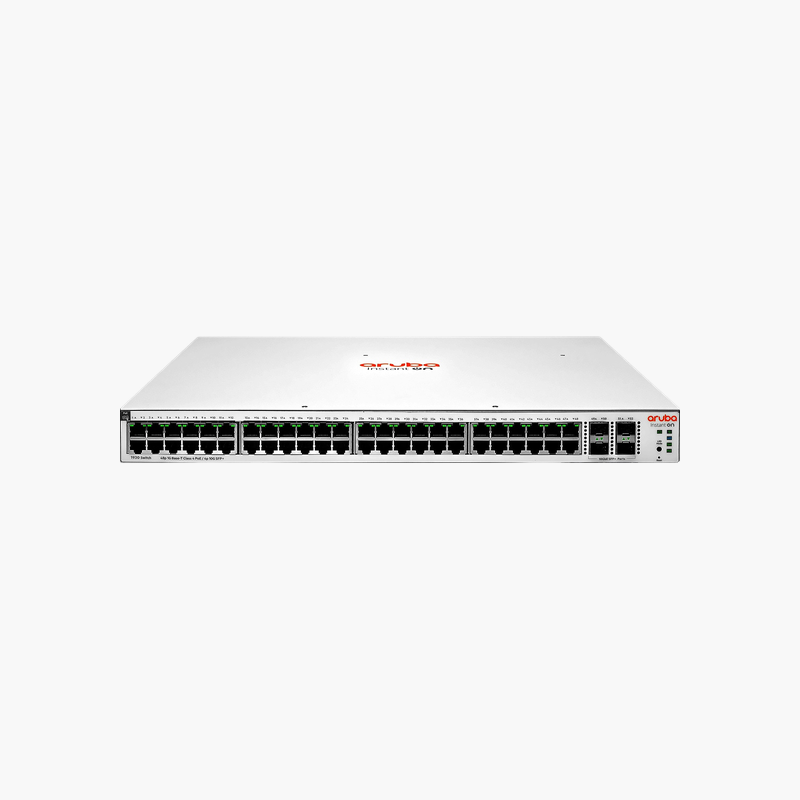

HPE Aruba Networking Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (JL686B) – 370W PoE, 4x 1G/10G SFP/SFP+, Smart Managed

The HPE Aruba Networking Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (part number JL686B) is a smart managed PoE switch with 48x Gigabit RJ45 PoE+ and 4x 1G/10G SFP/SFP+ uplinks. It supplies 48x PoE+ (Class 4) power from a 370W budget for access points, IP cameras and VoIP phones.

More ports, less clutter.

Power and Connect Devices Over One Cable

Running separate power to every access point, camera and phone adds cost and limits where devices can go, while power bricks clutter ceilings and walls.

The HPE Aruba Networking Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch delivers 48x PoE+ (Class 4) power from a 370W budget over standard Ethernet, so devices can be installed wherever a network cable can reach.

Ports and Performance

Ports: 48x Gigabit RJ45 PoE+. Uplinks: 4x 1G/10G SFP/SFP+. PoE: 48x PoE+ (Class 4), 370W budget. SFP/SFP+ ports require compatible transceivers or DAC cables.

Management and Installation

VLANs, QoS, link aggregation and monitoring for growing networks. Installs cleanly in standard network racks and cabinets. Instant On cloud or local web management and Revision B.

Setup Instructions

How to Set Up the HPE Aruba Networking Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch

1. Mount the switch and connect power.
2. Connect an uplink port to your router or core switch.
3. Open the cloud dashboard or app and adopt or log in to the switch, then update the firmware.
4. Create VLANs and QoS rules, then connect your devices.
