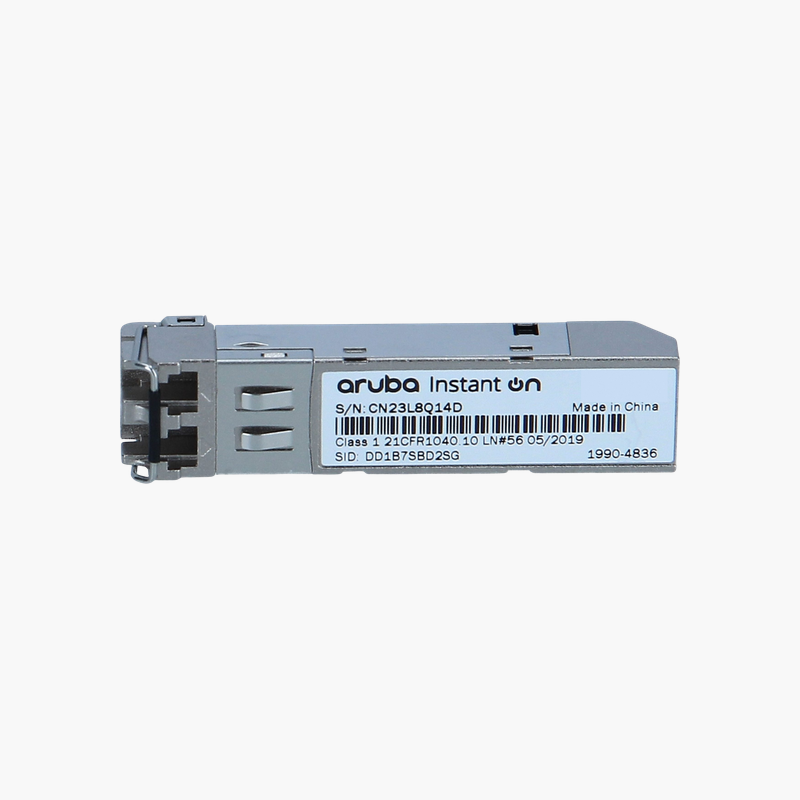

HPE Networking Instant On 1G SFP LC LX 10km SMF Transceiver (S0G20A) – Single-mode fiber, LC duplex

The HPE Networking Instant On 1G SFP LC LX 10km SMF Transceiver is a 1000BASE-LX SFP module for Single-mode fiber links up to 10km. It connects switches, servers and storage over fiber, extending links well beyond copper distance limits. It uses an LC duplex connector at 1310nm. For Instant On switches.

Plug in, link up.

Longer, Faster Links Over Fiber

Copper Ethernet is limited to around 100 meters, which is not enough between floors, buildings or data centre rows.

The HPE Networking Instant On 1G SFP LC LX 10km SMF Transceiver provides 1G over Single-mode fiber up to 10km, plugging straight into a compatible port.

Optical and Electrical Specifications

Form factor: SFP. Speed: 1G. Media: Single-mode fiber. Wavelength: 1310nm. Reach: 10km. Connector: LC duplex.

Installation and Compatibility

Insert the module into a matching port until it clicks, then connect the cable. Use matching module types on both ends of the link.

Setup Instructions

How to Install the HPE Networking Instant On 1G SFP LC LX 10km SMF Transceiver

1. Check that the host port supports this module type and speed.
2. Remove the dust cap and insert the module until it latches.
3. Connect the fiber or copper cable.
4. Confirm the link LED and port status in the switch or device interface.
