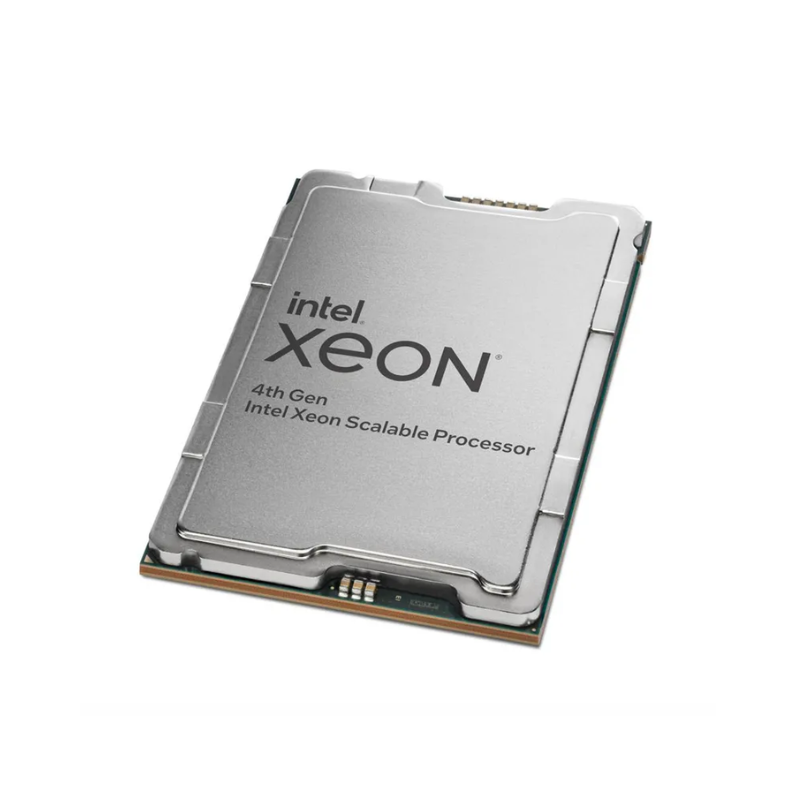

Intel Xeon Silver 4410T Server Processor – 10 Cores, 20 Threads, 2.7 GHz Base / 4.0 GHz Turbo, LGA4677

The Intel Xeon Silver 4410T is a 4th Gen Intel Xeon Scalable processor built on Sapphire Rapids (Intel 7), with 10 cores, 20 threads, a 2.7 GHz base clock and up to 4.0 GHz turbo. It uses the LGA4677 (Socket E) socket, supports DDR5-4000 ECC memory (8 channels) and is designed for servers, virtualization hosts and data center workloads.

Why Server Workloads Outgrow Desktop-Class Processors – Intel Xeon Silver 4410T

Desktop processors are built for one user and bursty workloads. Servers run many services at once, around the clock, and need memory capacity, error correction and I/O bandwidth that consumer chips do not provide. Pushing a desktop platform into that role usually ends in memory limits, missing ECC support or a shortage of PCIe lanes.

The Xeon Silver 4410T is a 4th Gen Intel Xeon Scalable processor designed for that environment. With 10 cores and 20 threads, 26.25MB of cache and 8 channels of DDR5-4000 ECC memory, it can host virtual machines, containers, databases and application servers on a single socket, and it supports multi-socket systems with up to 2 sockets.

Its 150W TDP and server-grade feature set make it a practical choice for building, upgrading or expanding LGA4677 servers from vendors such as Dell, HPE, Lenovo and Supermicro, as long as the system board and cooling are rated for it.

10 Cores and 8-Channel Memory for Server Consolidation

Higher core counts and wide memory bandwidth let you consolidate several older servers onto one host. Each of the 10 cores runs two threads, and the 26.25MB shared cache keeps hot data close to the cores for databases, hypervisors and analytics.

DDR5, PCIe 5.0 and Intel AMX Acceleration

The Xeon Silver 4410T supports DDR5-4000 across 8 channels and 80 lanes of PCIe 5.0, plus Intel AMX for AI acceleration. As a T-series model it is validated for extended operating temperatures and long-life deployments.

Setup Instructions

How to Install the Intel Xeon Silver 4410T

1. Confirm your system board uses the LGA4677 (Socket E) socket with the Intel C741 chipset, and update the BIOS to a version that lists the Xeon Silver 4410T as supported. Multi-socket systems need matching processors in every socket.
2. Clip the Xeon Silver 4410T into the carrier frame, attach the carrier to the heatsink, then lower the assembly onto the socket using the alignment pins. Tighten the heatsink screws in the order printed on the heatsink.
3. Use a heatsink rated for 150W and confirm the server’s fan configuration supports this TDP. Server heatsinks usually come with thermal paste pre-applied; replace it if the heatsink is being reused.
4. Install ECC memory following the board’s channel population guide, power on, confirm the processor and memory are detected in the BIOS or BMC, then install your operating system or hypervisor.
