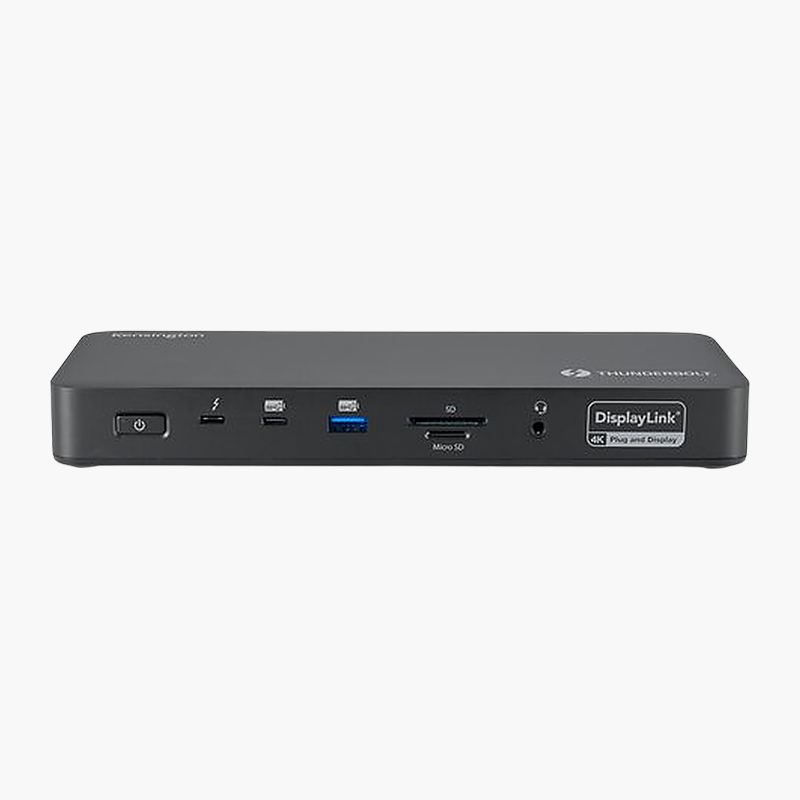

Kensington SD5910T EQ Thunderbolt 4 Docking Station (K35233NA) – 96W, 4 Displays, 2.5GbE, DisplayLink

The Kensington SD5910T EQ Thunderbolt 4 Docking Station connects to your laptop over Thunderbolt 4 and adds HDMI, DisplayPort, USB-A, Thunderbolt 4, USB-C, 2.5GbE, SD card and audio ports. It charges your laptop at up to 96W and drives up to four 4K 60Hz displays or single 8K 60Hz. It is built for one-cable desks with high-resolution monitors.

Plug in once and get straight to work.

Turn Your Laptop Into a Full Workstation

Plugging a charger, monitor cables, a network cable and several USB devices into a laptop every time you sit down wastes time and wears out its ports.

The Kensington SD5910T EQ Thunderbolt 4 Docking Station connects through Thunderbolt 4, charges your laptop at up to 96W, drives up to four 4K 60Hz displays or single 8K 60Hz and adds HDMI, DisplayPort, USB-A, Thunderbolt 4, USB-C, 2.5GbE, SD card and audio ports. Unplug one cable and the laptop is ready to go.

Multi-Display Support

Display support: Up to four 4K 60Hz displays or single 8K 60Hz. Video outputs: 2x HDMI, 2x DisplayPort. It uses DisplayLink technology, so the free DisplayLink driver is required for the extra displays.

Ports for Every Peripheral

USB connectivity: 1x USB-A 10Gbps, 2x USB-A 5Gbps; 2x Thunderbolt 4, 1x USB-C 10Gbps. It also includes 2.5GbE for wired networking, 3.5mm combo jack audio and SD + microSD (UHS-II) card slots.

Setup Instructions

How to Set Up the Kensington SD5910T EQ Thunderbolt 4 Docking Station

1. Connect the 149W power adapter to the dock and a wall outlet.
2. Connect your monitors to the dock’s video outputs (2x HDMI, 2x DisplayPort).
3. Plug in your keyboard, mouse, Ethernet cable and other USB devices.
4. Connect the dock to your laptop’s Thunderbolt 4 / USB4 port with the included cable.
5. Install the free DisplayLink driver (Windows/macOS) so all displays are detected, then arrange them in display settings.
