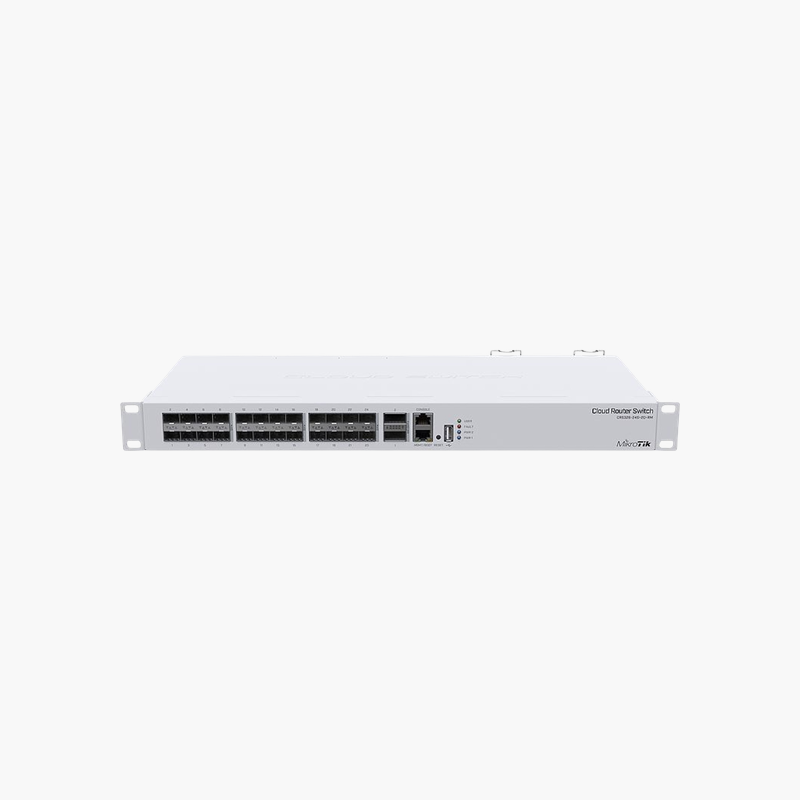

MikroTik CRS326-24S+2Q+RM 24-Port 10G SFP+ Cloud Router Switch (MIS32624S2QR) – 2x 40G QSFP+, Layer 3 Managed

The MikroTik CRS326-24S+2Q+RM 24-Port 10G SFP+ Cloud Router Switch is a Layer 3 managed switch with 24x 10G SFP+ and 2x 40G QSFP+ uplinks. It is built for server rooms, storage networks and high-speed backbones. Management features help segment and prioritise network traffic.

Expand your network the simple way.

High-Bandwidth Switching for Demanding Networks

Gigabit links quickly become bottlenecks when servers, NAS and backup jobs move large files at the same time.

The MikroTik CRS326-24S+2Q+RM 24-Port 10G SFP+ Cloud Router Switch provides 24x 10G SFP+ plus 2x 40G QSFP+, giving storage, virtualisation and backbone links the bandwidth they need.

Ports and Performance

Ports: 24x 10G SFP+. Uplinks: 2x 40G QSFP+. SFP/SFP+ ports require compatible transceivers or DAC cables.

Management and Installation

Routes between VLANs and subnets directly on the switch. Installs cleanly in standard network racks and cabinets. Dual boot RouterOS / SwOS.

Setup Instructions

How to Set Up the MikroTik CRS326-24S+2Q+RM 24-Port 10G SFP+ Cloud Router Switch

1. Mount the switch and connect power.
2. Connect an uplink port to your router or core switch.
3. Open the web interface and adopt or log in to the switch, then update the firmware.
4. Create VLANs and QoS rules, then connect your devices.
