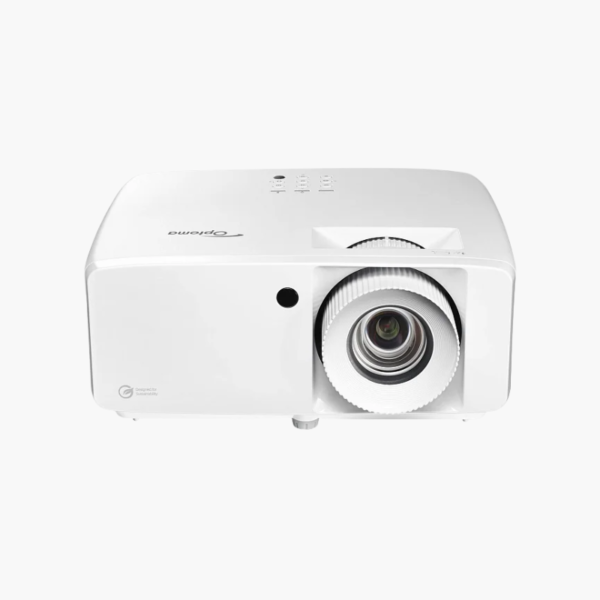

Optoma UHZ66 4K UHD Laser Projector – 4000 Lumens, 240Hz Gaming, 30,000-Hour Laser Light Source

The Optoma UHZ66 is a compact 4K UHD laser projector rated at 4,000 lumens. It is designed for home cinema and gaming users who want lamp-free ownership, pairing a 30,000-hour laser with a 240Hz mode at 4.4ms response and a flexible 1.6x zoom lens in a 6.6 lb chassis.

Deep-Dive Story & Problem/Solution

Lamp Costs and Fading Brightness Undermine a 4K Projector Over Time

A lamp-based 4K projector looks its best in the first few hundred hours. After that, output drops steadily until the lamp is replaced, and each replacement adds cost and downtime. Lamps also need warm-up and cool-down periods that make quick viewing sessions awkward.

The UHZ66 uses a laser phosphor light source rated for 30,000 hours. Laser output declines far more slowly than a lamp, switches on and off almost instantly, and in this model consumes about 185W. The result is a 4,000-lumen 4K picture that stays consistent for years.

It also handles gaming well. Enhanced Gaming Mode gives 4.4ms response at 1080p/240Hz and 16.9ms at 4K/60Hz, so the same projector serves films and competitive play.

Bright 4K Laser Picture

A 0.65-inch DLP chip and 500,000:1 dynamic contrast ratio produce a sharp image with strong highlights on screens up to 300 inches. HDR content is processed with 10-bit color for smoother gradients.

Flexible Zoom and Low Upkeep

The 1.6x zoom covers a 1.40–2.24:1 throw range, wider than most home projectors. Horizontal and vertical keystone, RJ-45 and RS-232 control, a 15W speaker, and a filter-free sealed engine make installation and ownership simple.

Setup Instructions

How to Set Up the Optoma UHZ66

1. Position the projector 12 to 19.5 feet from a 120-inch screen on a table or ceiling mount.
2. Connect 4K sources to the two HDMI 2.0 inputs and a LAN cable if you want network control.
3. Adjust the 1.6x zoom and focus, then correct geometry with horizontal and vertical keystone.
4. Select a picture mode for films, or enable Enhanced Gaming Mode for low-lag play.
