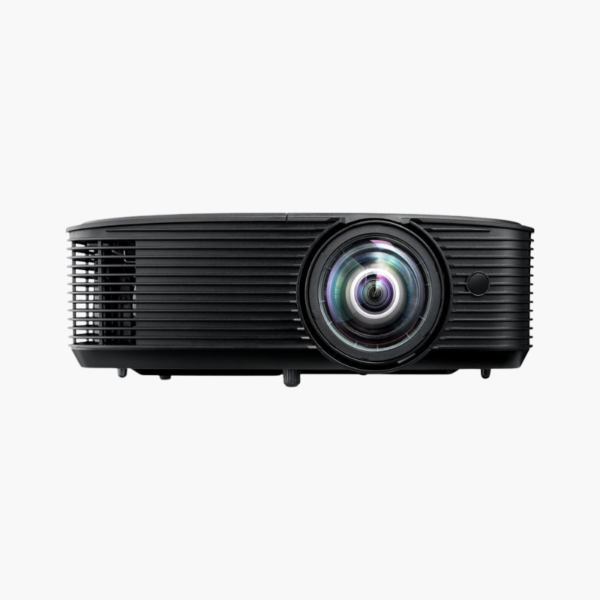

Optoma W318ST WXGA Short Throw Projector – 1280×800, 3D Ready, HDMI, Built-in 10W Speaker

The Optoma W318ST is a WXGA short throw DLP projector for classrooms, training rooms, and small meeting spaces. Its 0.52:1 lens creates a 100-inch image from under four feet, while HDMI, VGA, network control, and a 10W speaker cover everyday presentation needs without extra equipment.

Deep-Dive Story & Problem/Solution

Shadows and Glare Are the Real Classroom Projector Problem

When a standard projector sits at the back of a room, the teacher or presenter stands directly in its light path. The result is a shadow across the content and glare in the presenter’s eyes every time they turn to face the room.

The W318ST places the projector close to the screen. With a 0.52:1 throw ratio, it sits about 3 feet 8 inches away for a 100-inch 16:10 image, either on a wall mount above the board or on a cart in front of the first row. The presenter stands behind the beam.

Native WXGA resolution matters here too. Most laptops output a 16:10 picture, and a matching 1280 x 800 DLP chip shows it pixel-for-pixel, which keeps small text in documents readable.

Short Throw Optics for Tight Rooms

The fixed short throw lens produces images from about 32 to 300 inches. In rooms under 15 feet deep, that frees up floor space and removes the need for a long ceiling drop at the back of the room.

Low Upkeep for Shared Spaces

The lamp is rated for 6,000 hours in normal mode and 10,000 in Eco. DLP’s sealed optical engine has no filters to clean, and LAN control lets a facilities team schedule shutdowns and check lamp hours from a central console.

Setup Instructions

How to Set Up the Optoma W318ST

1. Position the projector about 3.5 to 4.5 feet from the screen or whiteboard, on a wall mount, ceiling mount, or cart.
2. Connect a laptop by HDMI or VGA; add an Ethernet cable if the room is managed over the network.
3. Power on, adjust the focus ring, and apply vertical keystone if the image edges are not parallel.
4. Set the display mode to Presentation or Bright and switch to Eco lamp mode when the room can be dimmed.
