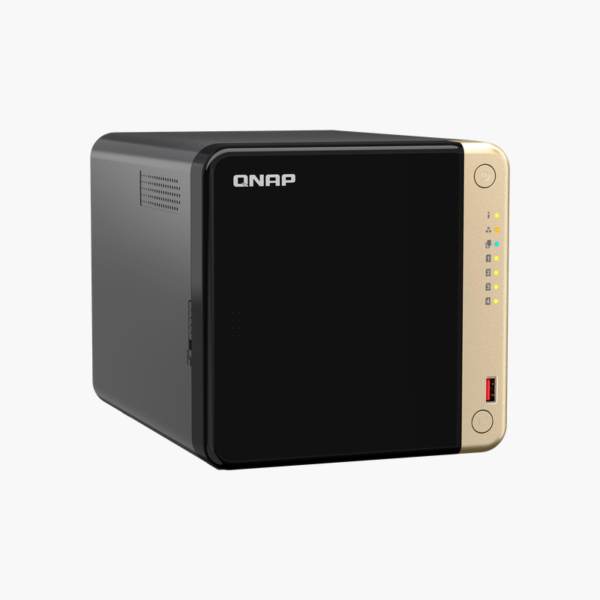

QNAP TS-464 4-Bay NAS Enclosure (Diskless) – Intel Celeron N5095 quad-core, 4GB DDR4, Dual 2.5GbE, M.2 NVMe Slots

The QNAP TS-464 is a 4-bay diskless NAS with an Intel Celeron N5095 quad-core (up to 2.9GHz) processor, 4GB DDR4 (expandable to 16GB) and dual 2.5GbE networking. It suits home users, homelab builders and small businesses that want centralised file sharing, backup and media storage with their own choice of drives.

Private cloud storage with 2.5GbE speed and room to grow.

Why a NAS Beats Scattered External Drives and Cloud Subscriptions

Files scattered across laptops, USB drives and cloud accounts are hard to back up and share. Cloud subscriptions grow expensive as data grows, and single external drives fail without warning.

The QNAP TS-464 centralises storage in a 4-bay RAID array that every device on your network can reach. Dual 2.5GbE ports speed up transfers, M.2 NVMe slots enable SSD caching, and QTS apps handle backups, snapshots and remote access.

2.5GbE Networking and SSD Caching

Two 2.5GbE ports deliver faster transfers than gigabit NAS units, and 2x M.2 2280 PCIe Gen3 NVMe slots let you add NVMe cache for frequently accessed files.

Expandable Platform

4GB DDR4 (expandable to 16GB) and 1x PCIe Gen3 x2 slot give room for 10GbE cards, more cache and virtualization or container workloads as needs grow.

Setup Instructions

How to Set Up the QNAP TS-464

1. Install 3.5-inch or 2.5-inch SATA drives (sold separately) in the trays – use NAS-rated CMR drives.
2. Connect the NAS to your router or switch with an Ethernet cable and power it on.
3. Use Qfinder Pro or the web installer to install QTS and create a storage pool and RAID level.
4. Create shared folders, user accounts and backup or snapshot schedules.
