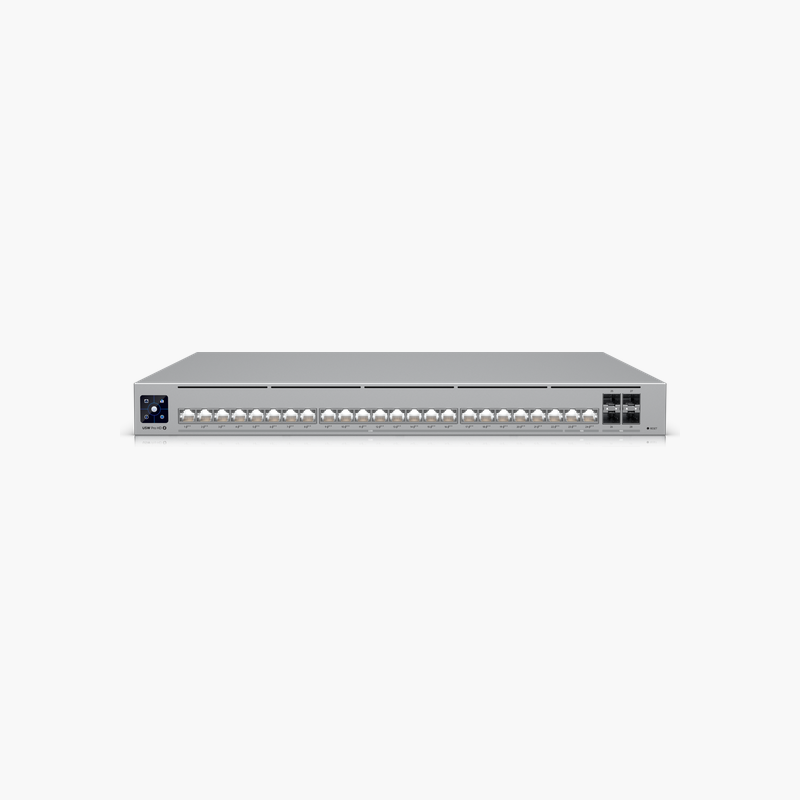

Ubiquiti UniFi Switch Pro HD 24 PoE (USW-Pro-HD-24-PoE) (UBSWPHD24POE) – 24x PoE (PoE+/PoE++), 4x 10G SFP+, Layer 3 Managed

The Ubiquiti UniFi Switch Pro HD 24 PoE (USW-Pro-HD-24-PoE) is a Layer 3 managed PoE switch with 2x 10G + 22x 2.5G RJ45 PoE and 4x 10G SFP+ uplinks. It supplies 24x PoE (PoE+/PoE++) power for access points, IP cameras and VoIP phones. It is built for business access and aggregation layers. Management features help segment and prioritise network traffic.

More ports, less clutter.

Power and Connect Devices Over One Cable

Running separate power to every access point, camera and phone adds cost and limits where devices can go, while power bricks clutter ceilings and walls.

The Ubiquiti UniFi Switch Pro HD 24 PoE (USW-Pro-HD-24-PoE) delivers 24x PoE (PoE+/PoE++) power over standard Ethernet, so devices can be installed wherever a network cable can reach.

Ports and Performance

Ports: 2x 10G + 22x 2.5G RJ45 PoE. Uplinks: 4x 10G SFP+. PoE: 24x PoE (PoE+/PoE++). SFP/SFP+ ports require compatible transceivers or DAC cables.

Management and Installation

Routes between VLANs and subnets directly on the switch. Installs cleanly in standard network racks and cabinets. UniFi Network application management.

Setup Instructions

How to Set Up the Ubiquiti UniFi Switch Pro HD 24 PoE (USW-Pro-HD-24-PoE)

1. Mount the switch and connect power.
2. Connect an uplink port to your router or core switch.
3. Open the cloud dashboard or app and adopt or log in to the switch, then update the firmware.
4. Create VLANs and QoS rules, then connect your devices.
