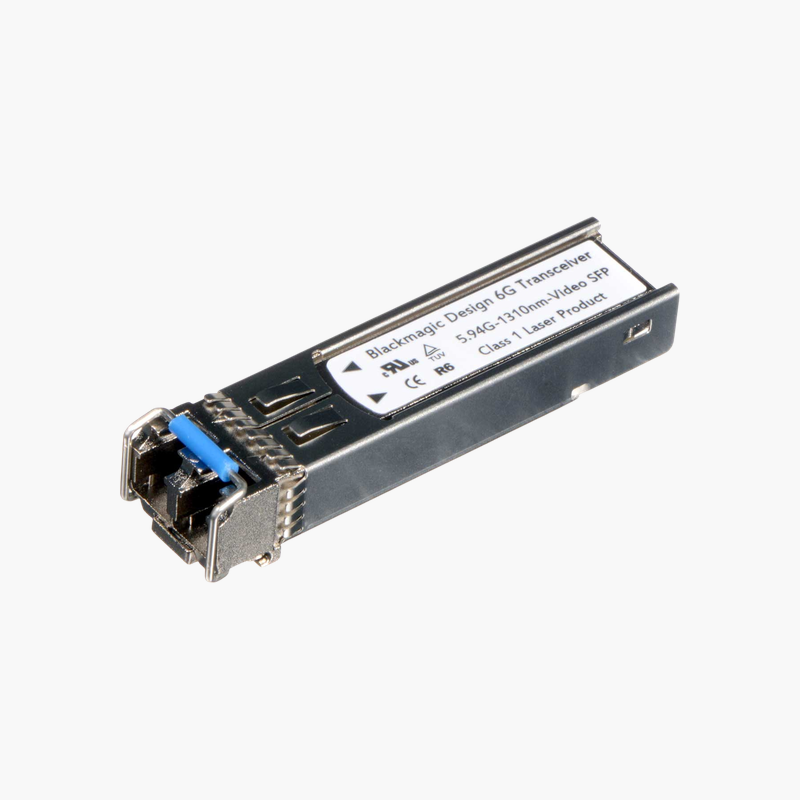

Blackmagic Design Adapter 6G BD SFP Optical Module (ADPT-6GBI/OPT) – Single-mode fiber, LC duplex

The Blackmagic Design Adapter 6G BD SFP Optical Module is a 6G-SDI optical SFP module for Single-mode fiber links. It connects SDI production equipment over fiber for long cable runs between cameras, switchers and control rooms. It uses an LC duplex connector. Bi-directional for Blackmagic products with SFP sockets.

Plug in, link up.

Extend SDI Video Over Fiber

SDI copper cables lose signal quality over long runs, limiting where cameras and monitors can go.

The Blackmagic Design Adapter 6G BD SFP Optical Module provides 6G-SDI over Single-mode fiber, plugging straight into a compatible port.

Optical and Electrical Specifications

Form factor: SFP. Speed: 6G-SDI. Media: Single-mode fiber. Connector: LC duplex.

Installation and Compatibility

Insert the module into a matching port until it clicks, then connect the cable. Use matching module types on both ends of the link.

Setup Instructions

How to Install the Blackmagic Design Adapter 6G BD SFP Optical Module

1. Check that the host port supports this module type and speed.
2. Remove the dust cap and insert the module until it latches.
3. Connect the fiber or copper cable.
4. Confirm the link LED and port status in the switch or device interface.
