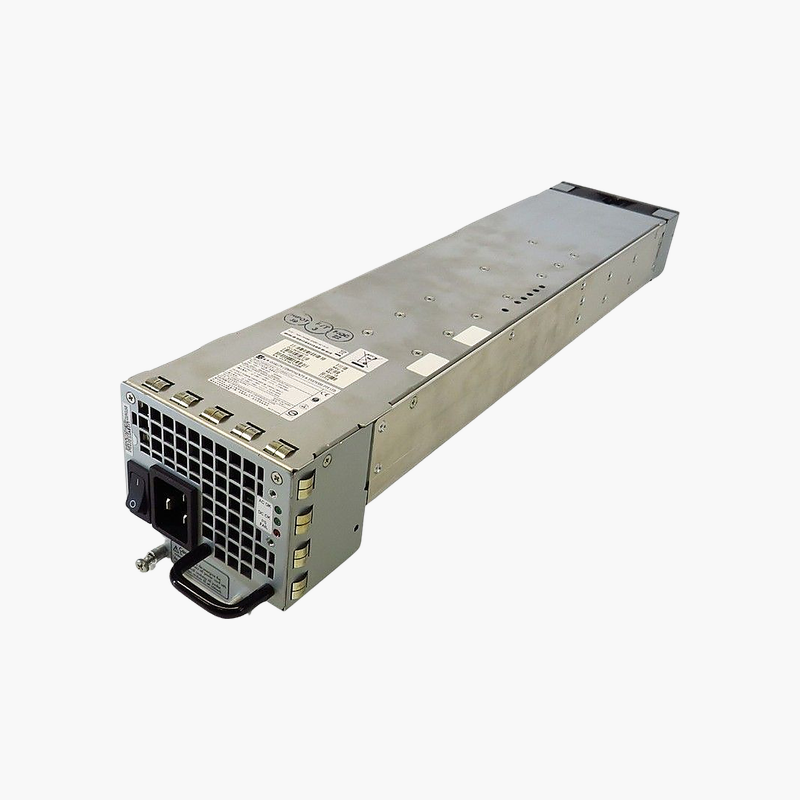

Juniper PWR-MX480-2520-AC-S 2520W AC Power Supply — High-Capacity PSU for MX480 / MX240 Routers

High-capacity, hot-swap power for Juniper MX480 and MX240 routers.

The Juniper PWR-MX480-2520-AC-S is a 2520W high-capacity AC power supply for Juniper MX480 and MX240 universal routing platforms. It is hot-swappable, supports redundant configurations and draws up to 16A. It suits service providers and enterprises running MX routers with high-power line cards.

Powering Fully Loaded MX Routers

MX480 and MX240 routers often run high-density line cards at the network edge or core. As cards are added, total power draw rises, and standard supplies may not provide enough capacity for full redundancy.

The PWR-MX480-2520-AC-S provides 2520W per supply, enough to power heavily populated chassis while keeping redundant capacity. A failed supply can be replaced without interrupting routing.

High-Capacity Redundant Design

Install supplies in redundant configurations so the router stays online if one fails. The higher per-unit capacity reduces the number of supplies needed for a given load.

Hot-Swap Without Downtime

Each supply can be removed and inserted while the router is running, and Junos reports status for monitoring and alarms.

Setup Instructions

How to Replace the PWR-MX480-2520-AC-S

1. Confirm the part number is listed as supported for your Juniper MX480 or MX240 router, and confirm your AC circuit is rated for the supply’s input current.
2. If the device has a second working power supply, leave it running; otherwise schedule a maintenance window and power the device down.
3. Disconnect the AC or DC cord from the failed unit, release the latch and slide it out, then slide the new module into the empty bay until it locks.
4. Connect the power cord, check that the PSU status LED turns green, and confirm in the device CLI or management interface that the supply reports OK.
