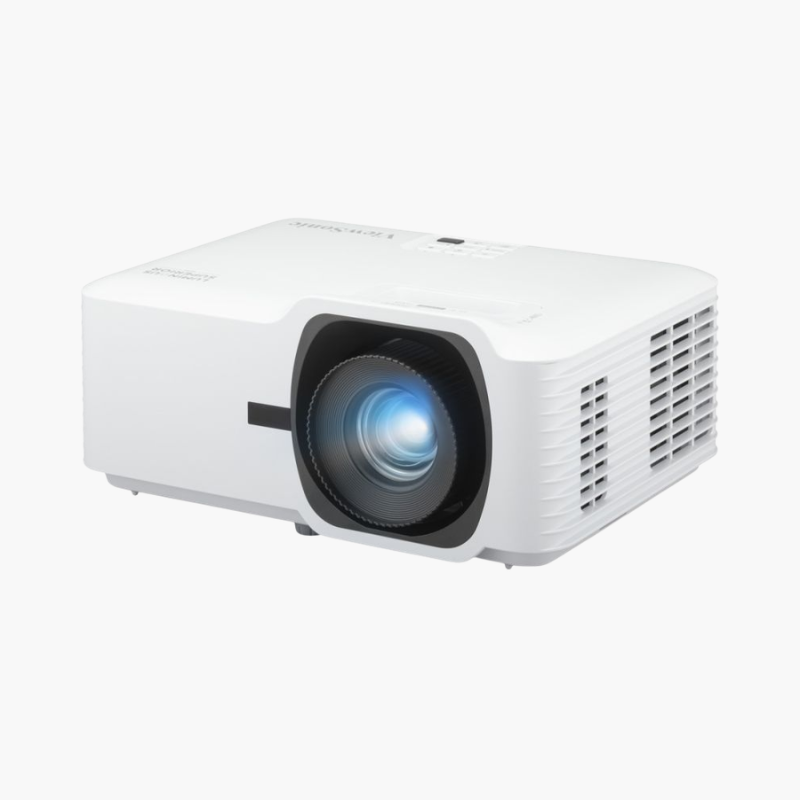

ViewSonic LS741HD Full HD 1080p Laser Projector – 5000 ANSI Lumens, 1.6x Zoom, LAN Control

The ViewSonic LS741HD is a 5,000-lumen Full HD laser projector for large classrooms, conference rooms, and worship spaces. A 1.6x zoom lens, LAN control, and a laser rated up to 30,000 hours make it a compact, lamp-free replacement for existing standard-throw installations.

Deep-Dive Story & Problem/Solution

Replacing Old Projectors Means Matching the Existing Throw Distance

When an old projector fails, the mount is usually already fixed 15 feet or more from the screen. A replacement with a short zoom range will not fill the screen from that position, and moving the mount means new cabling and ceiling work.

The LS741HD’s 1.40–2.24:1 lens with 1.6x zoom covers the throw distances of most legacy installs. A 120-inch 16:9 image can be achieved from roughly 12.2 to 19.5 feet.

The laser engine outputs 5,000 ANSI lumens while consuming about 210W and is rated for 20,000 hours in normal mode or 30,000 in Eco, eliminating the lamp cycle of the unit it replaces.

Long-Zoom Full HD Projection

Native 1080p suits video and detailed slides at sizes from 30 to 300 inches. Horizontal and vertical keystone tidy alignment.

Network-Managed and Compact

RJ-45 lets administrators monitor status and schedule power. Two HDMI inputs, USB, RS-232, and an audio output are provided, with a 15W speaker for local sound.

Setup Instructions

How to Install the ViewSonic LS741HD

1. Mount the projector at 1.40 to 2.24 times the screen width.
2. Connect HDMI sources and LAN or RS-232 control.
3. Adjust the 1.6x zoom and focus, then apply keystone if needed.
4. Configure network settings and choose a light source mode.
