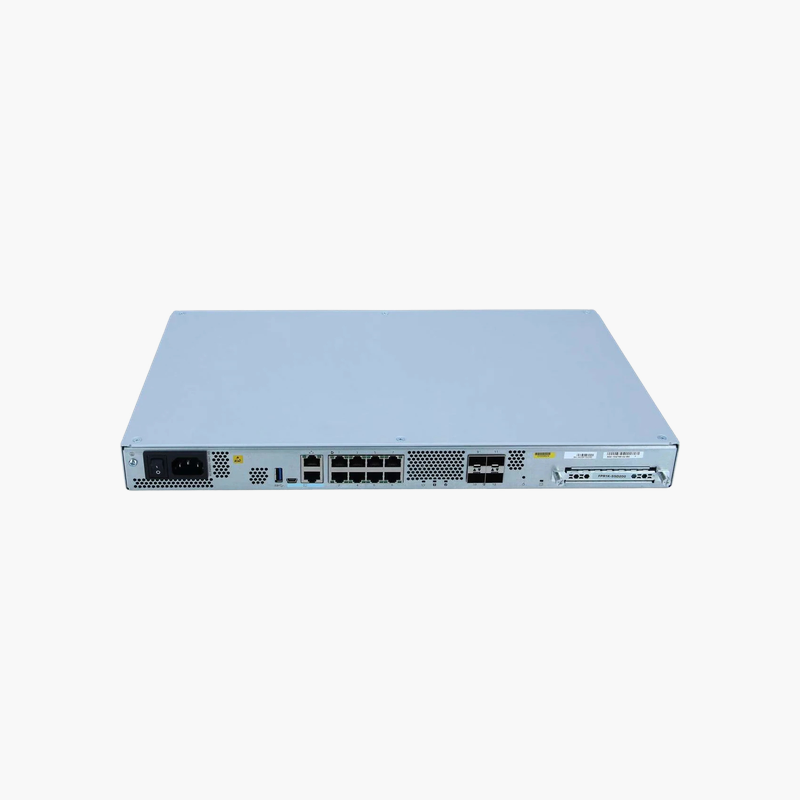

Cisco Firepower 1140 Security Appliance with ASA Software (FPR1140-ASA-K9) – 6 Gbps Firewall, 8 x GE + 4 x SFP, 1RU

Proven Cisco ASA firewalling on modern Firepower hardware.

The Cisco Firepower 1140 (FPR1140-ASA-K9) is a 1RU security appliance that ships with Cisco ASA software, delivering 6 Gbps of stateful firewall throughput and 1.2 Gbps of IPsec VPN. It suits mid-sized businesses, branch offices and internet edges that want ASA reliability with 8 copper and 4 SFP ports.

Why Teams Move from Older ASA 5500-X Firewalls to the Firepower 1140

Many networks still run firewalls that are approaching end of support. As internet links get faster and more staff connect remotely, these older appliances struggle with VPN load and connection rates, and software updates eventually stop.

The Firepower 1140 runs the same Cisco ASA software that administrators already know, so existing policies, NAT rules and VPN configurations can be migrated with minimal retraining. It supports 400,000 concurrent connections and 100,000 new connections per second, with 1.2 Gbps of IPsec VPN throughput for up to 400 peers.

Because the hardware is shared with Cisco Secure Firewall Threat Defense (FTD), the appliance can be re-imaged to FTD later for next-generation IPS and application control at up to 3.3 Gbps (FW + AVC + IPS), protecting the investment if your security needs grow.

Flexible Interfaces and Contexts

Eight Gigabit RJ-45 ports and four SFP ports allow separate WAN, LAN, DMZ and failover links on one box. Two security contexts are included (up to five), so one Firepower 1140 can act as multiple virtual firewalls for different departments or customers.

Compact 1RU Design with Local Storage

The appliance fits a single rack unit with an integrated AC power supply and a 200 GB SSD for logs and images. Active/standby high availability is supported when paired with a second identical unit.

How to Set Up the Cisco Firepower 1140 with ASA

1. Rack-mount the appliance, connect power, and connect the management port and your WAN and LAN interfaces.
2. Connect to the console port or open ASDM from a browser on the management network, and set the hostname, passwords and interface IP addresses.
3. Configure NAT, access rules and routing, then set up site-to-site or AnyConnect VPN as needed, and activate any licenses through Smart Licensing.
4. Upgrade to the recommended ASA release, configure logging and backups, and add a second unit for failover if required.
