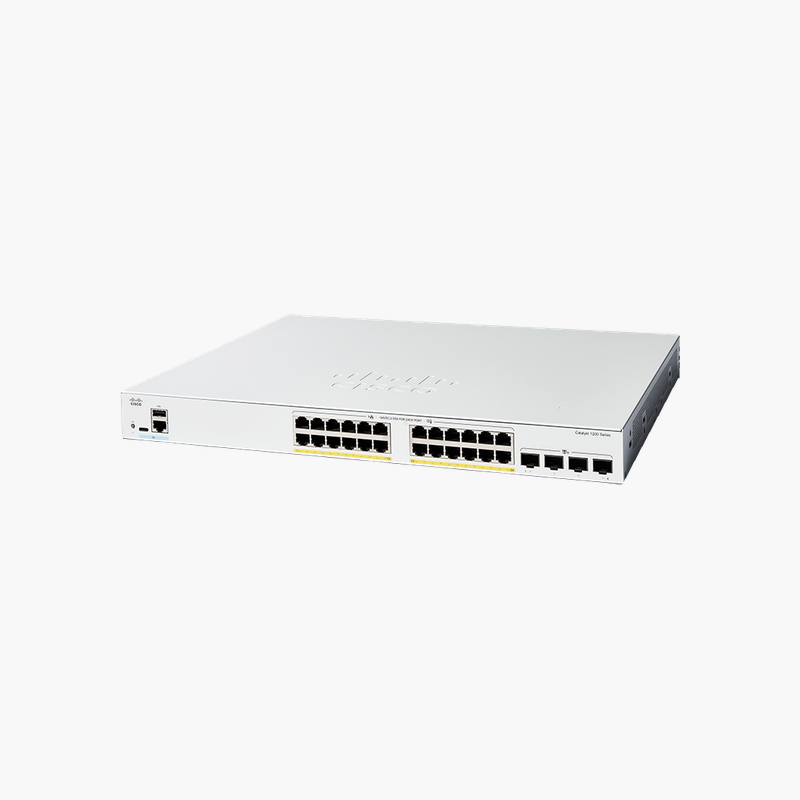

Cisco Catalyst 1200 24-Port Gigabit Full PoE+ Smart Switch (C1200-24FP-4X) (CIC120024F4X) – 375W PoE, 4x 10G SFP+

The Cisco Catalyst 1200 24-Port Gigabit Full PoE+ Smart Switch (C1200-24FP-4X) is a smart managed PoE switch with 24x Gigabit PoE+ and 4x 10G SFP+ uplinks. It supplies 24x PoE+ power from a 375W budget for access points, IP cameras and VoIP phones. It is built for growing small and medium business networks.

Reliable connections for every device.

Simplify Installs with Power over Ethernet

Running separate power to every access point, camera and phone adds cost and limits where devices can go, while power bricks clutter ceilings and walls.

The Cisco Catalyst 1200 24-Port Gigabit Full PoE+ Smart Switch (C1200-24FP-4X) delivers 24x PoE+ power from a 375W budget over standard Ethernet, so devices can be installed wherever a network cable can reach.

Ports and Performance

Ports: 24x Gigabit PoE+. Uplinks: 4x 10G SFP+. PoE: 24x PoE+, 375W budget. SFP/SFP+ ports require compatible transceivers or DAC cables.

Management and Installation

VLANs, QoS, link aggregation and monitoring for growing networks. Installs cleanly in standard network racks and cabinets. Web UI, Cisco Business app and dashboard management.

Setup Instructions

How to Set Up the Cisco Catalyst 1200 24-Port Gigabit Full PoE+ Smart Switch (C1200-24FP-4X)

1. Mount the switch and connect power.
2. Connect an uplink port to your router or core switch.
3. Open the web interface and adopt or log in to the switch, then update the firmware.
4. Create VLANs and QoS rules, then connect your devices.
