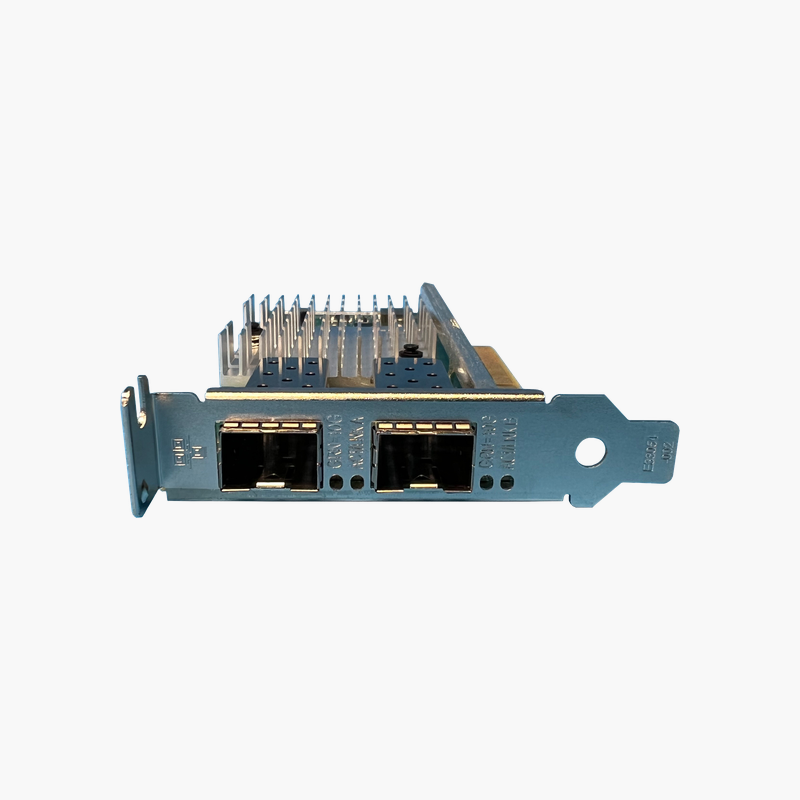

Dell Intel X520-DA2 Dual Port 10GbE SFP+ Network Adapter, Low Profile (942V6) – PCIe low-profile adapter

The Dell Intel X520-DA2 Dual Port 10GbE SFP+ Network Adapter, Low Profile is a server network adapter with 2x 10GbE SFP+ ports based on the Intel X520 controller, in a PCIe low-profile adapter format. It adds high-throughput, low-latency Ethernet for virtualisation hosts, storage networks and busy application servers.

More bandwidth for every server.

Faster Server Connectivity for Data-Heavy Workloads

Onboard network ports quickly become a bottleneck when servers host virtual machines, storage traffic and backups at the same time.

The Dell Intel X520-DA2 Dual Port 10GbE SFP+ Network Adapter, Low Profile adds 2x 10GbE through SFP+ connections, giving each server more bandwidth and the ability to separate management, storage and application traffic.

Ports and Controller

2x 10GbE SFP+ ports on the Intel X520 controller. SFP-based ports need compatible transceivers or DAC cables.

Form Factor and Compatibility

PCIe low-profile adapter. Confirm the server model and slot type before installing.

Setup Instructions

How to Install the Dell Intel X520-DA2 Dual Port 10GbE SFP+ Network Adapter, Low Profile

1. Power down the server, unplug it and use anti-static precautions.
2. Install the adapter in the matching slot and secure it.
3. Power on and install or update the network driver and firmware.
4. Connect cables or transceivers and configure the interfaces in the OS or hypervisor.
