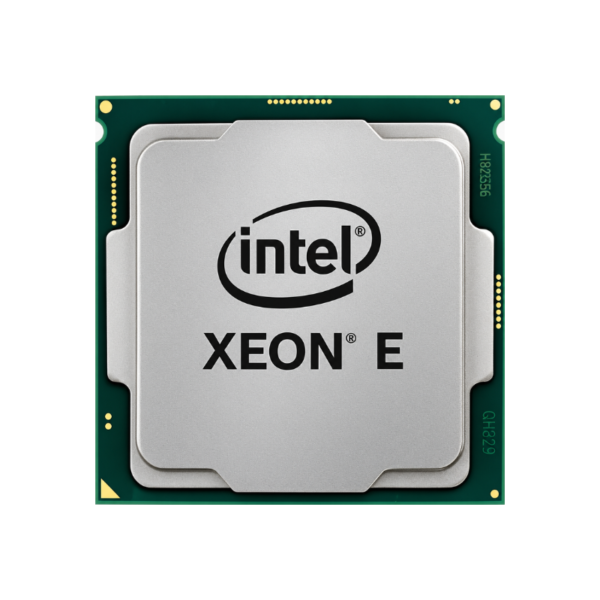

Intel Xeon E-2336 Server Processor – 6 Cores, 12 Threads, 2.9 GHz Base / 4.8 GHz Turbo, LGA1200

The Intel Xeon E-2336 is an Intel Xeon E-2300 processor built on Rocket Lake (14nm), with 6 cores, 12 threads, a 2.9 GHz base clock and up to 4.8 GHz turbo. It uses the LGA1200 socket, supports DDR4-3200 ECC memory (2 channels (up to 128GB)) and is designed for small business servers, NAS builds and entry workstations.

Why Small-Business Servers Need ECC Memory and Xeon Reliability – Intel Xeon E-2336

Small offices, NAS builds and homelabs often start on desktop hardware, then run into the same problems: no ECC memory support, the risk of silent data corruption and platforms that are not validated for 24/7 operation.

The Xeon E-2336 is a single-socket Xeon built for that job. Its 6 cores and 12 threads at up to 4.8 GHz handle file serving, backup, small databases, virtualization and services such as Active Directory, while DDR4-3200 ECC support protects data in memory.

It has no integrated graphics, which suits servers that use a BMC (such as IPMI or iDRAC) or a discrete card for video. It requires a motherboard with the Intel C252 / C256 chipset; consumer chipsets do not support Xeon E-series processors.

6 Cores With Turbo Boost up to 4.8 GHz

The Xeon E-2336 balances core count and clock speed. Turbo Boost raises individual cores up to 4.8 GHz when workloads need responsiveness, while all 6 cores work together on parallel tasks such as virtualization, backups and compiling.

ECC Memory, PCIe 4.0 and Modern Security Features

Rocket Lake brings PCIe 4.0 with 20 CPU lanes for NVMe storage and fast networking, plus ECC memory support, SGX and AVX-512.

Setup Instructions

How to Install the Intel Xeon E-2336

1. Confirm your system board uses the LGA1200 socket with the Intel C252 / C256 chipset, and update the BIOS to a version that lists the Xeon E-2336 as supported.
2. Lift the socket load plate, align the notches on the Xeon E-2336 with the socket keys and lower it straight down. Close the load plate and lever; the socket cover will pop off.
3. Apply a thin layer of thermal paste and mount an LGA1200-compatible cooler rated for at least 65W.
4. Install ECC memory following the board’s channel population guide, power on, confirm the processor and memory are detected in the BIOS or BMC, then install your operating system or hypervisor.
