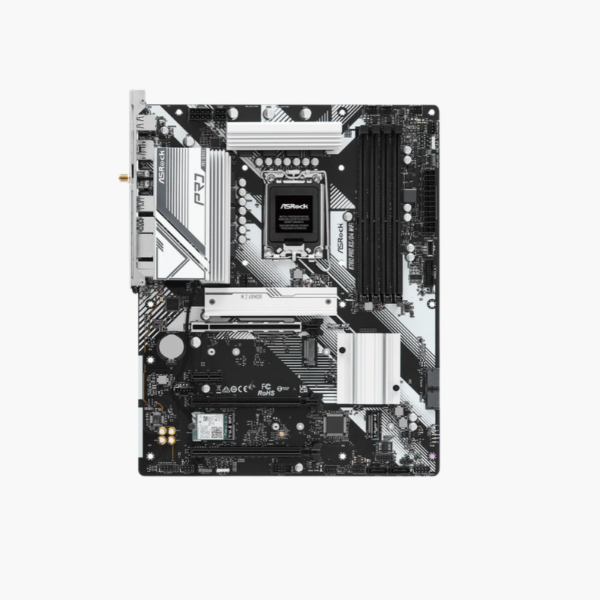

ASRock B760 Pro RS/D4 ATX Motherboard — LGA 1700, DDR4 5333+ (OC), 3x PCIe 4.0 M.2, 2.5G LAN

A full-size Intel B760 board with three Gen4 M.2 slots that keeps your DDR4.

The ASRock B760 Pro RS/D4 is an ATX motherboard for Intel 12th, 13th and 14th Gen processors on LGA 1700. It supports up to 128GB of DDR4 at 5333+ MHz (OC), three PCIe 4.0 M.2 slots, four SATA ports, Realtek 2.5G LAN and HDMI and DisplayPort outputs. It suits gaming and productivity builds.

More Storage and Expansion Than Typical Budget Boards

Many budget Intel boards are Micro-ATX with two M.2 slots and limited expansion. That becomes a constraint when you add a capture card, a second SSD or a faster network card.

The B760 Pro RS/D4 uses a full ATX layout with four expansion slots and three PCIe 4.0 M.2 slots. Combined with DDR4 support, it delivers a well-equipped 14th Gen build without the cost of DDR5.

PCIe 4.0 Graphics and Triple M.2

The primary x16 slot runs at PCIe 4.0 x16 from the CPU. A second x16-size slot runs at PCIe 4.0 x4, and two PCIe 3.0 x1 slots handle smaller cards. Three M.2 slots (PCIe 4.0 x4 from the CPU, plus PCIe 4.0 x2 and x4 from the chipset) and four SATA ports cover storage.

Networking and I/O

A Realtek RTL8125BG 2.5G LAN controller provides fast wired networking. The rear panel includes a USB 3.2 Gen 1 Type-C port, five USB 3.2 Gen 1 Type-A and two USB 2.0 ports, HDMI 2.0 and DisplayPort 1.4, plus Realtek ALC897 audio.

Setup Instructions

How to Install the ASRock B760 Pro RS/D4

1. Install the LGA 1700 processor and cooler, then fit DDR4 memory (A2 and B2 for two sticks) and your M.2 SSD before mounting the board.
2. Mount the board in the case and connect the 24-pin ATX, CPU power and front-panel headers.
3. Install the graphics card in the top PCIe 4.0 x16 slot and connect SATA drives.
4. Power on into the UEFI BIOS, enable the XMP/EXPO memory profile, update the BIOS using Instant Flash, and install ASRock chipset, LAN and audio drivers.
