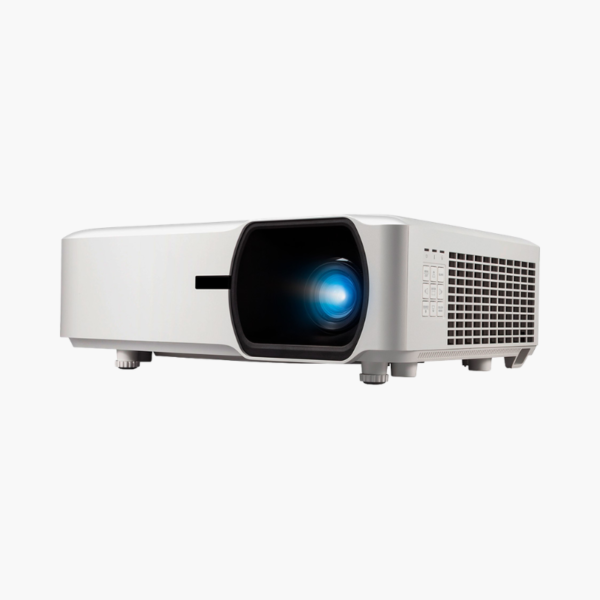

ViewSonic LS750WU WUXGA Laser Projector – 5000 ANSI Lumens, 1.3x Zoom, Dual 10W Speakers, LAN Control

The ViewSonic LS750WU is a 5,000-lumen WUXGA laser projector for conference rooms, classrooms, and training centers. It offers a 20,000-hour laser light source, a 1.3x zoom lens, dual 10W speakers, and network control, providing a bright, low-maintenance display for rooms used every day.

Deep-Dive Story & Problem/Solution

Detailed Content Needs Both Resolution and Brightness

Spreadsheets, engineering drawings, and dashboards lose their value when viewers cannot read them. A low-resolution image blurs fine lines, and a dim one disappears under office lighting. Fixing only one of these does not solve the problem.

The LS750WU pairs 1920 x 1200 WUXGA resolution with 5,000 ANSI lumens and a 300,000:1 contrast ratio. The 16:10 format adds vertical space beyond 1080p, which helps with long tables and document views.

Its laser phosphor engine holds brightness far longer than a lamp and is rated for 20,000 hours, so image quality on year three is close to day one.

Sharp WUXGA Detail at 5,000 Lumens

Supported image sizes run from about 30 to 300 inches. Horizontal and vertical keystone make alignment straightforward where the mount is not perfectly centered.

Audio, Connectivity, and Remote Management

Two HDMI inputs, VGA, composite, S-Video, two USB ports, RJ-45, and RS-232 connect a wide range of equipment. Dual 10W speakers remove the need for separate audio in mid-size rooms.

Setup Instructions

How to Install the ViewSonic LS750WU

1. Mount or place the projector 9.6 to 12.5 feet from a 120-inch screen.
2. Connect HDMI or VGA sources and plug in LAN for network control.
3. Set zoom and focus, then correct geometry with keystone.
4. Pick a color mode and configure power scheduling if required.
