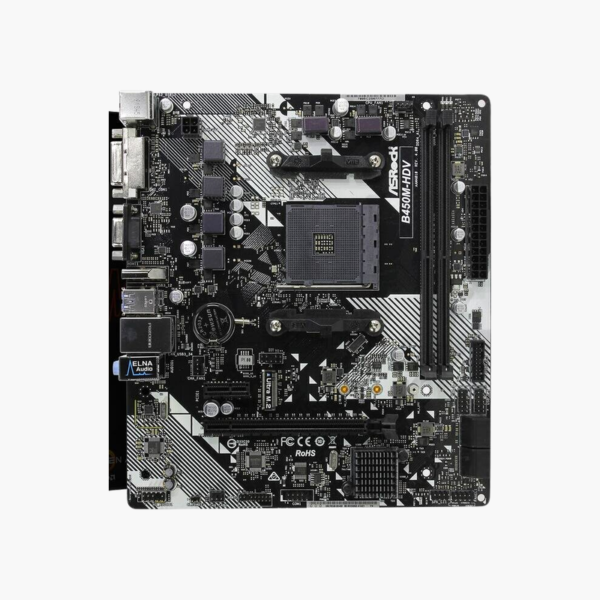

ASRock B450M-HDV R4.0 Micro-ATX Motherboard — AM4, DDR4 3200+ (OC), Ultra M.2, HDMI/DVI/VGA

One of the most affordable ways to build a Ryzen PC.

The ASRock B450M-HDV R4.0 is a Micro-ATX motherboard for AMD Ryzen 2000 to 5000 series processors on Socket AM4. It supports up to 64GB of DDR4 at 3200+ MHz (OC), an Ultra M.2 slot, four SATA3 ports and HDMI, DVI-D and D-Sub outputs. It suits budget gaming, school and office PCs.

A Budget AM4 Board With Wide CPU Support

The AM4 platform covers several Ryzen generations, but not every board supports every processor. Budget buyers want a board that works with the CPU they have now and can take a Ryzen 5000 upgrade later.

The B450M-HDV R4.0 supports Ryzen 2000, 3000, 4000 and 5000 series processors (newer CPUs with a BIOS update). It offers an M.2 slot for a fast SSD and three video outputs for APU builds, at a price that leaves more budget for the CPU and graphics card.

Storage and Expansion

The Ultra M.2 slot supports PCIe Gen3 x4 NVMe or SATA3 M.2 SSDs. Four SATA3 ports handle additional drives. A PCIe 3.0 x16 slot runs a graphics card, and a PCIe 2.0 x1 slot accepts small expansion cards.

Display and Connectivity

HDMI, DVI-D and D-Sub outputs support Ryzen APUs without a graphics card. USB 3.1 Gen 1 and USB 2.0 ports, Gigabit LAN and 7.1-channel HD audio cover everyday needs.

Setup Instructions

How to Install the ASRock B450M-HDV R4.0

1. Install the AM4 Ryzen processor and cooler, then fit DDR4 memory in both DIMM slots and your M.2 SSD before mounting the board.
2. Mount the board in the case and connect the 24-pin ATX, CPU power and front-panel headers.
3. Install the graphics card (or connect your monitor to HDMI, DVI-D or D-Sub for APUs) and connect SATA drives.
4. Power on into the UEFI BIOS, enable the XMP/EXPO memory profile, update the BIOS using Instant Flash, and install ASRock chipset, LAN and audio drivers.
